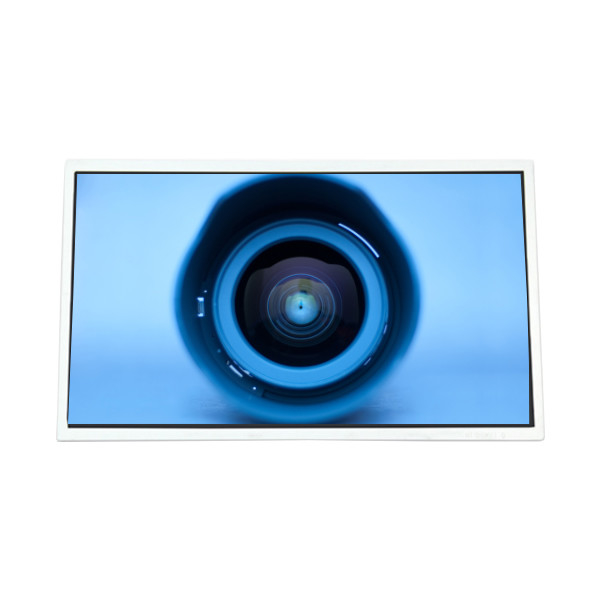

MV230FHB-N20 23.0 inch 1920*1080 LCD Screen Display For Desktop Monitor

Brand Name:	BOE
Model Number:	MV230FHB-N20
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV230FHB-N20

Diagonal Size:

23.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 95PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

509.184(W)×286.416(H) Mm

Luminance:

0 Cd/m²

Contrast Ratio:

1000:1 (Min.) (TM)

Application:

Desktop Monitor

Input Voltage:

5.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

MV230FHB-N20 23.0 inch 1920*1080 LCD Screen Display For Desktop Monitor

MV230FHB-N20 LCD Panel Product details :

Brand	BOE
Model P/N	MV230FHB-N20
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Dim.	516.6(H)×297.7(V)×1.32(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Min.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.0% (Typ.)(with Polarizer)
Support Color	16.7M 99%sRGB
Light Source	No B/L
Weight	445g (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 6 source chips
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

MV230FHB-N20 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

MV230FHB-N20 LCD Panel Shipping and Package :

MV230FHB-N20 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

MV230FHB-N20 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

MV230FHB-N20 LCD Panel FAQ :

Q: Can I pay my goods MV230FHB-N20 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of MV230FHB-N20 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for MV230FHB-N20 ?

A: Of course!sample order is welcome !

Q: How to make payment for MV230FHB-N20 ?

A: We accept T/T , Paypal , western union .
