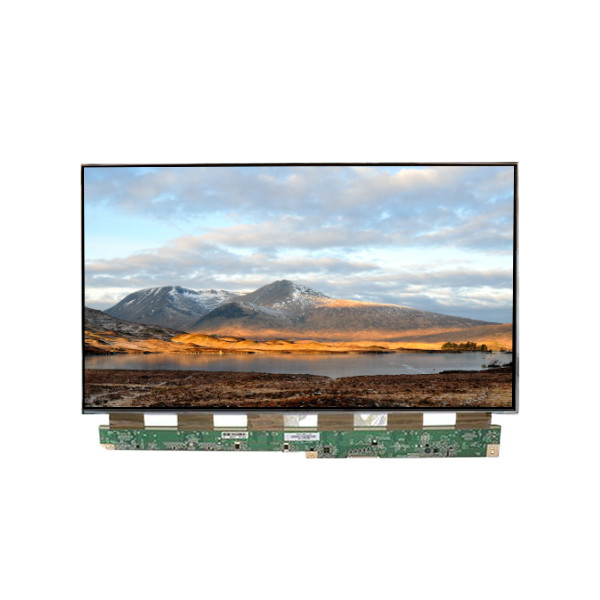

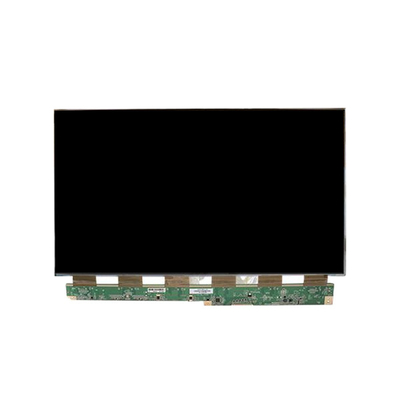

MV238FHB-N40 23.8 inch 1920*1080 LCD Screen Display For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHB-N40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHB-N40 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Application: | Desktop Monitor | Input Voltage: | 5.0V (Typ.) |
Product Description
MV238FHB-N40 23.8 inch 1920*1080 LCD Screen Display For Desktop Monitor
MV238FHB-N40 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHB-N40 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.04(W)×307.76(H)×1.32(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.55% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | No B/L, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 8 source chips |
| Panel Weight | 508g (Typ.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
MV238FHB-N40 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
MV238FHB-N40 LCD Panel Shipping and Package :
MV238FHB-N40 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
MV238FHB-N40 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
MV238FHB-N40 LCD Panel FAQ :
Q: Can you tested the MV238FHB-N40 before shipping ?
A: Of course , our lcd panel MV238FHB-N40 was Strictly tested before shipping.
Q: How to order MV238FHB-N40 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel MV238FHB-N40 received can't work ?
A:MV238FHB-N40 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Want to Know more details about this product
