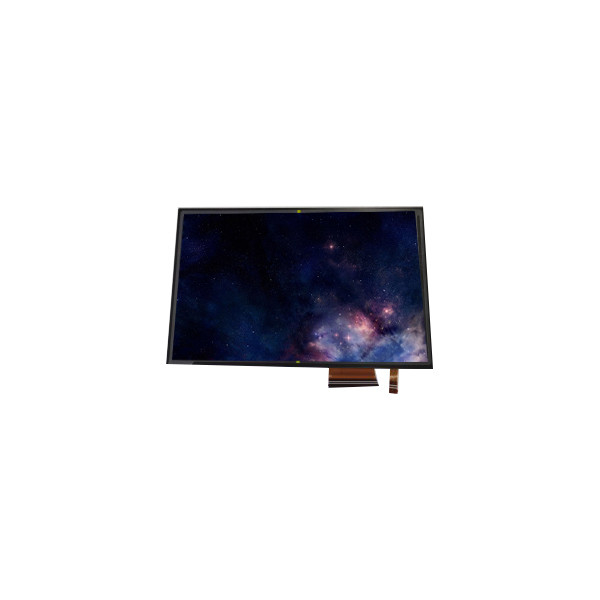

TM070RFH16 7.0 inch 800*480 LCD Screen Display For Digital Photo Frame

Brand Name:	TIANMA
Model Number:	TM070RFH16
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070RFH16

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Luminance:

0 Cd/m²

Contrast Ratio:

500:1 (Typ.) (TM)

Application:

Digital Photo Frame、Portable DVD Player

Input Voltage:

3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070RFH16 7.0 inch 800*480 LCD Screen Display For Digital Photo Frame

TM070RFH16 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070RFH16
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	-
Outline Size	162.5(W)×96.7(H)×1.83(D) mm
Surface	Antiglare
Brightness	0 cd/m²
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Glass Depth	0.70+0.70 mm
Transmissivity	-
Display Colors	16.7M 50%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Driver IC	COGBuilt-in 1 source + 1 gate chips
Panel Weight	-
Application	Digital Photo Frame,Portable DVD Player
Signal Interface	Parallel RGB (1 ch, 8-bit), 60 pins FPC
Input Voltage	3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

TM070RFH16 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TM070RFH16 LCD Panel Shipping and Package :

TM070RFH16 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TM070RFH16 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TM070RFH16 LCD Panel FAQ :

Q: How do you ship my goods TM070RFH16 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of TM070RFH16 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel TM070RFH16 at a very low value ?

A: Yes , we can . pls inform us before shipping .
