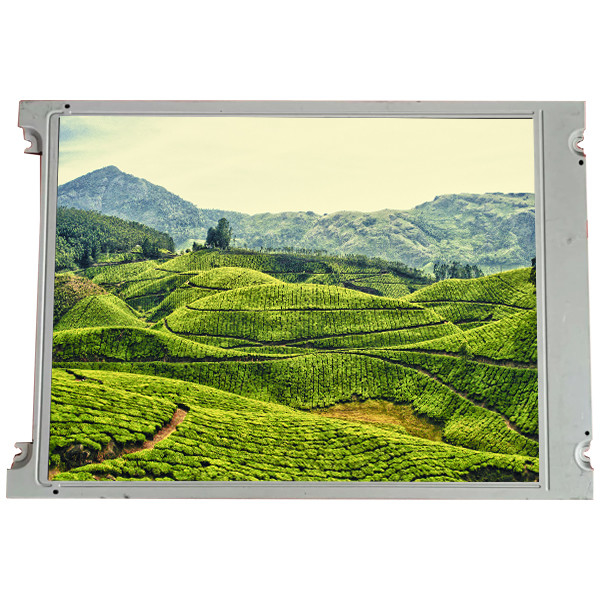

SP19V001 7.5 inch 640*480 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | SP19V001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | SP19V001 | Diagonal Size: | 7.5" |
|---|---|---|---|
| Panel Type: | FSTN-LCD, LCM | Resolution: | 640×480, VGA 107PPI |
| Pixel Format: | Rectangle | Color Depth: | Monochrome |
| Used For: | Industrial | Signal Type: | Parallel Data (1ch, 4-bit), 22 PinsFPC |
Product Description
SP19V001 7.5 inch 640*480 LCD Screen Display Panel
SP19V001 LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | SP19V001 |
| Diagonal Size | 7.5" |
| Panel Type | FSTN-LCD, LCM |
| Resolution | 640×480, VGA 107PPI |
| Pixel Format | Rectangle |
| Active Area | 151.66(W)×113.74(H) mm |
| Bezel Opening | 158.5(W)×118.0(H) mm |
| Outline Size | 197(W)×145(H)×8.5(D) mm |
| Brightness | 65 cd/m² (Min.) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) |
| Best View on | 6 o'clock |
| Display Colors | Monochrome |
| Frequency | - |
| Weight | - |
| Surface | - |
| Contrast Ratio | 15:1 (Min.) (TM) |
| Display Mode | STN, Black/White (Positive), Transmissive |
| Response Time | 160/110 (Typ.)(Tr/Td) |
| Lamp Type | 1 pcs CCFL, Without Driver |
| Touch Screen | Without |
| Application | Industrial |
| Signal Interface | Parallel Data (1ch, 4-bit), 22 pinsFPC |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating Temp.: 5 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| SP19V001 7.5 inch 640*480 LCD Screen Display Panel | |
SP19V001 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
SP19V001 LCD Panel Shipping and Package :
SP19V001 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
SP19V001 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
SP19V001 LCD Panel FAQ :
Q: How long will I receive my goods of lcd SP19V001 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the SP19V001 sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel SP19V001 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of SP19V001 ?
A: 90DAYS.
Want to Know more details about this product
