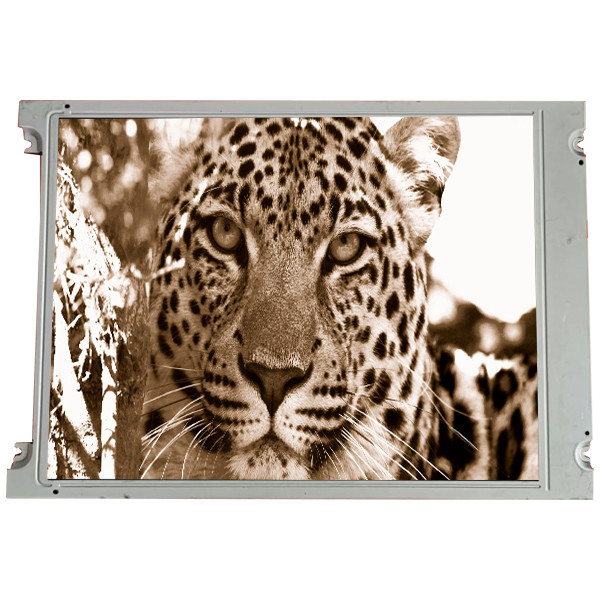

SP14Q011-T1A 5.7 inch LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | SP14Q011-T1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | SP14Q011-T1A | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | FSTN-LCD, LCM | Resolution: | 320×240, QVGA 70PPI |
| Pixel Format: | Rectangle | Active Area: | 115.2(W)×86.4(H) Mm |
| Luminance: | 45 Cd/m² (Typ.) | Contrast Ratio: | 5 : 1 (Typ.) (TM) |
| Used For: | Industrial | Voltage Supply: | 5.0V (Typ.) |
Product Description
SP14Q011-T1A 5.7 inch LCD Screen Display Panel
SP14Q011-T1A LCD Panel Product details :
| Brand | KOE |
| Model P/N | SP14Q011-T1A |
| Diagonal Size | 5.7" |
| Panel Type | FSTN-LCD, LCM |
| Resolution | 320×240, QVGA 70PPI |
| Pixel Format | Rectangle |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 119.4(W)×90.6(H) mm |
| Outline (mm) | 131×102.2×13.2 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 45 cd/m² (Typ.) |
| Contrast Ratio | 5 : 1 (Typ.) (TM) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) |
| Response | 150/330 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | STN, Black/White (Positive), Transflective |
| Color Depth | Monochrome |
| Backlight | 1S8PWLED, 40K hours, No Driver |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 75Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | Parallel Data (1ch, 4-bit), Connector20 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| SP14Q011-T1A 5.7 inch LCD Screen Display Panel | |
SP14Q011-T1A lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
SP14Q011-T1A LCD Panel Shipping and Package :
SP14Q011-T1A LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
SP14Q011-T1A LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
SP14Q011-T1A LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of SP14Q011-T1A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of SP14Q011-T1A ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of SP14Q011-T1A ?
A: Of course!If you make a large order, we will give you a discount.
