LCD Screen Display Panel

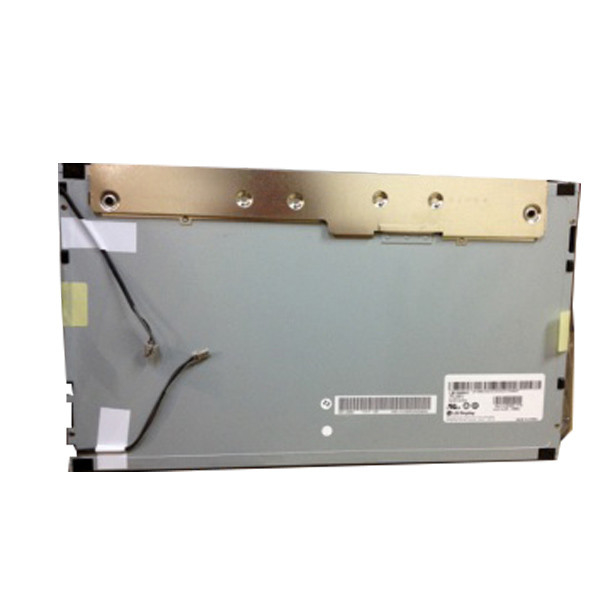

LM156WH1-TLE1 15.6 inch 1366*768 LCD Screen

All Category

Floor Standing Digital Signage

LM156WH1-TLE1 15.6 inch 1366*768 LCD Screen

Brand Name:	LG
Model Number:	LM156WH1-TLE1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM156WH1-TLE1

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Color Depth:

262K 60%NTSC

Backlight:

2 PcsCCFL, 35K Hours, No Driver

Used For:

Desktop Monitor

Refresh Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

LM156WH1-TLE1 15.6 inch 1366*768 LCD Screen

LM156WH1-TLE1 Panel Product details :

Brand	LG Display
Model P/N	LM156WH1-TLE1
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	347.5(W)×196.8(H) mm
Outline Size	363.8(W)×215.9(H)×12.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	650 : 1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	2/6 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 60%NTSC
Backlight	2 pcsCCFL, 35K hours, No Driver
Mass	0.95/1.00Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit), 30 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM156WH1-TLE1 15.6 inch 1366*768 LCD Screen

LM156WH1-TLE1 Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

LM156WH1-TLE1 Panel Shipping and Package :

LM156WH1-TLE1 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

LM156WH1-TLE1 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

LM156WH1-TLE1 LCD Panel FAQ :

Q: Can You declare my order of LM156WH1-TLE1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LM156WH1-TLE1 ?

A: We accept T/T , Paypal , western union .

Q: How can I trace my order of LM156WH1-TLE1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of LM156WH1-TLE1 ?

A: Of course!If you make a large order, we will give you a discount.
