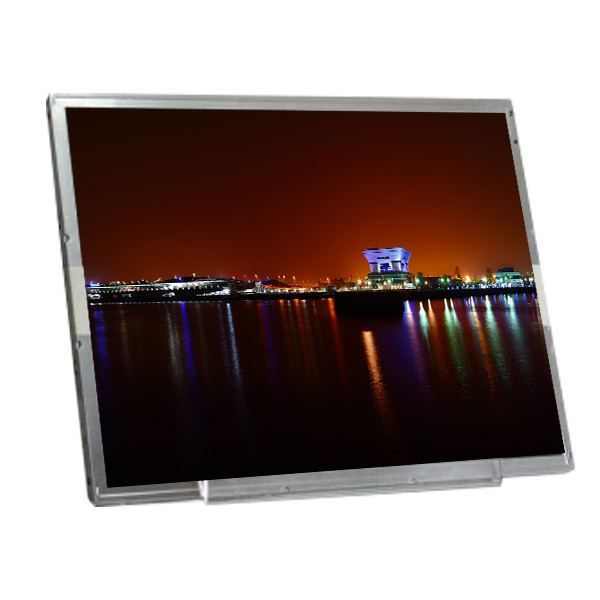

15.1 inch 1024*768 LM151X3-A2 Lcd screen for Desktop Monitor

Brand Name:	LG
Model Number:	LM151X3-A2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM151X3-A2

Diagonal Size:

15.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 84PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

307.2(W)×230.4(H) Mm

Application:

Desktop Monitor

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

15.1 inch 1024*768 LM151X3-A2 Lcd screen for Desktop Monitor

LM151X3-A2 Panel Product details :

Brand	LG
Model P/N	LM151X3-A2
Diagonal Size	15.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	307.2(W)×230.4(H) mm
Bezel Opening	311.2(W)×234.4(H) mm
Outline Size	352(W)×263.5(H)×16.3(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
Viewing Angle	75/75/60/55 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	10/35 (Typ.)(Tr/Td)
Display Colors	16.7M 67%NTSC
Lamp Type	2 pcsCCFL, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.50Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	TTL (2 ch, 8-bit), 80 pins Connector
Input Voltage	5.0V (Typ.)(VCC)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
15.1 inch 1024*768 LM151X3-A2 Lcd screen for Desktop Monitor

LM151X3-A2 Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

LM151X3-A2 Panel Shipping and Package :

LM151X3-A2 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

LM151X3-A2 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

LM151X3-A2 LCD Panel FAQ :

Q: Can You declare my order of LM151X3-A2 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of LM151X3-A2 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LM151X3-A2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM151X3-A2 ?

A: Of course!sample order is welcome !
