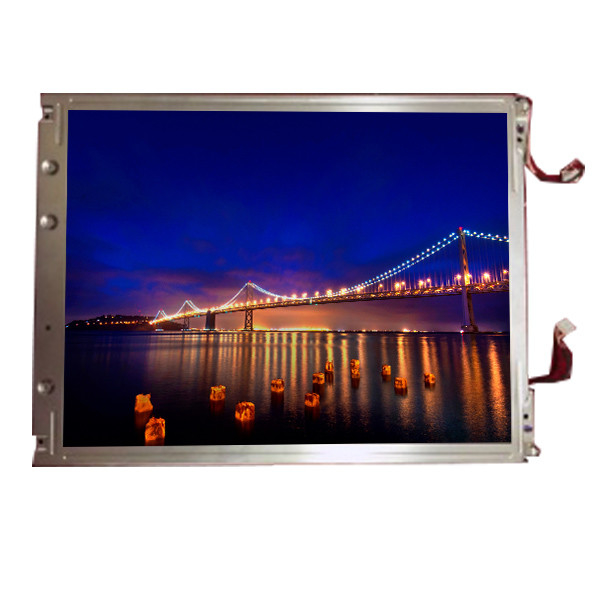

LM151X2-C2TH LCD Display Panel 1024*768 LCD Screen Module

Brand Name:	LG
Model Number:	LM151X2-C2TH
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM151X2-C2TH

Diagonal Size:

15.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 84PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

307.2(W)×230.4(H) Mm

Support Color:

262K 65% NTSC

Light Source:

CCFL [2 Pcs] , 40K Hours , W/O Driver

Designed For:

Desktop Monitor

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

LM151X2-C2TH LCD Display Panel 1024*768 LCD Screen Module

LM151X2-C2TH Panel Product details :

Brand	LG
Model P/N	LM151X2-C2TH
Diagonal Size	15.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	307.2(W)×230.4(H) mm
Bezel Opening	311.2(W)×234.4(H) mm
Outline Dim.	352.6(H)×265(V)×19(D)mm
Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.) (TM)
View Direction	-
Response Time	20/30 (Typ.)(Tr/Td)
Viewing Angle	60/60/45/45 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 65%NTSC
Light Source	CCFL [2 pcs], 40K hours, W/O Driver
Weight	1.50Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit), 41 pinsConnector
Power Supply	3.3V (Typ.)(VDD)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM151X2-C2TH LCD Display Panel 1024*768 LCD Screen Module

LM151X2-C2TH Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

LM151X2-C2TH Panel Shipping and Package :

LM151X2-C2TH LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

LM151X2-C2TH LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

LM151X2-C2TH LCD Panel FAQ :

Q: Can You declare my order of LM151X2-C2TH at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of LM151X2-C2TH ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM151X2-C2TH ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order LM151X2-C2TH now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.
