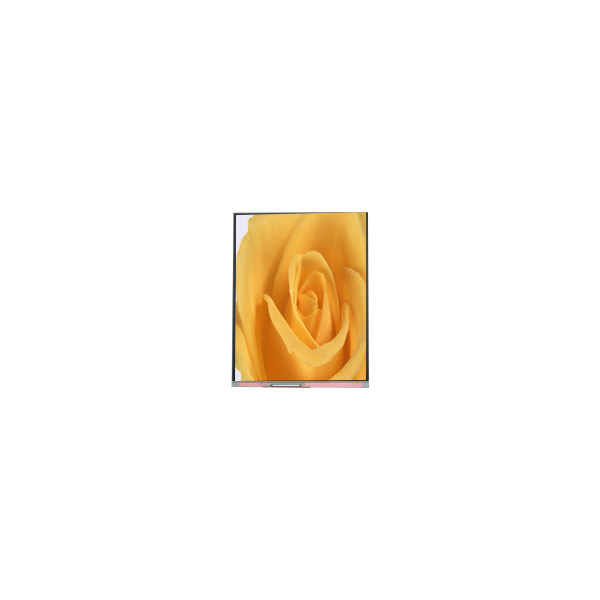

C050SWAK-1 R0 5.0 inch 720*1280 60Hz lcd Screen display
Product Details:
Place of Origin: | China |
Brand Name: | IVO |
Model Number: | C050SWAK-1 R0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | C050SWAK-1 R0 | Diagonal Size: | 5.0" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, CELL , Full Cell, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 294PPI |
Pixel Format: | RGB Vertical Stripe | Frequency: | 60Hz |
Support Color: | Mobile Phone | Environment: | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
Response Time: | 35 (Typ.)(Tr+Td) | Plate Thickness: | 0.40+0.40 Mm |
Product Description
C050SWAK-1 R0 5.0 inch 720*1280 60Hz lcd Screen display
C050SWAK-1 R0 LCD Panel Product details :
Brand | IVO |
Model P/N | C050SWAK-1 R0 |
Diagonal Size | 5.0" |
Panel Type | a-Si TFT-LCD, CELL , Full Cell, Q-CUT (Full Cell) |
Resolution | 720(RGB)×1280, WXGA 294PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 62.1(W)×110.4(H) mm |
Bezel Opening | - |
Outline Dim. | 64.5(H)×117.69(V)×0.8(D) mm |
Treatment | Without Polarizer |
Luminance | 0 cd/m² |
Contrast Ratio | 1200:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 35 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | IPS, Normally Black |
Plate Thickness | 0.40+0.40 mm |
Transmittance | 4.3% (Typ.)(with Polarizer) |
Support Color | 16.7M 70%NTSC |
Light Source | No B/L |
Weight | 15.1g (Typ.) |
Designed For | Mobile Phone |
Frame Rate | 60Hz |
Touch Panel | Without |
D-IC Detail | COG Suggest HX8394-F, VM5292-A |
Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
C050SWAK-1 R0 5.0 inch TFT LCD Screen for Mobile Phone |
C050SWAK-1 R0 LCD Panel Shipping and Package :
C050SWAK-1 R0 LCD Screen Shipping Information :
Tracking Number Update:
If your tracking number shows no logistics information, it could be due to delays in updates from logistics companies handling numerous parcels. Please reach out to us immediately instead of opening a dispute. We are committed to resolving any issues promptly and ensuring your satisfaction.
Time of Shipment:
We aim to ship all products within 1-5 weekdays. Our packing and shipping process is tailored to customer orders and involves thorough quality checks before dispatch. Therefore, a brief handling period is required to ensure product quality.
Delivery Time:
Unforeseen circumstances like hurricanes or rainstorms may affect logistics, causing delays. We assure you that we are honest sellers who prioritize your satisfaction. Kindly allow the logistics company adequate processing time to deliver your package to you.
Local Post Office Handling:
If your logistics information indicates that the package has reached the local post office but you haven't been contacted, please proactively reach out to your local post office to arrange for package collection. Failure to do so may result in the parcel being returned, and any consequences will be the buyer's responsibility.
Protection Time Extension:
Should the product protection period expire after we've shipped your item, please extend the protection period by contacting us promptly.
Import Duties:
Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These additional costs are the responsibility of the buyer. We advise buyers to be aware of their country's import regulations and associated fees before making a purchase.
C050SWAK-1 R0 LCD Screen Quality & Warranty :
Quality Assurance: We ensure the quality of all LCD (touch screen) products through comprehensive testing using specialized equipment. Our commitment is to deliver only products of the highest quality. We understand that any issues with the product become our responsibility, and we strive to prevent such occurrences.
Product Dissatisfaction: In the event that you are dissatisfied with our products, we kindly request that you notify us within 3 days of receiving your parcel. To facilitate the resolution process, please provide real pictures and other evidence showcasing the issue. Upon verification, we will offer either a replacement or refund if the products do not meet the described specifications.
Return Policy: If you have possessed the item for more than 7 days, it is deemed used or second-hand. Under these circumstances, we can only provide a replacement service after receiving the returned item.
Q: Can you tested the C050SWAK-1 R0 before shipping ?
A: Of course , our lcd panel C050SWAK-1 R0 was Strictly tested before shipping.
Q: How to order C050SWAK-1 R0 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel C050SWAK-1 R0 received can't work ?
A:C050SWAK-1 R0 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
