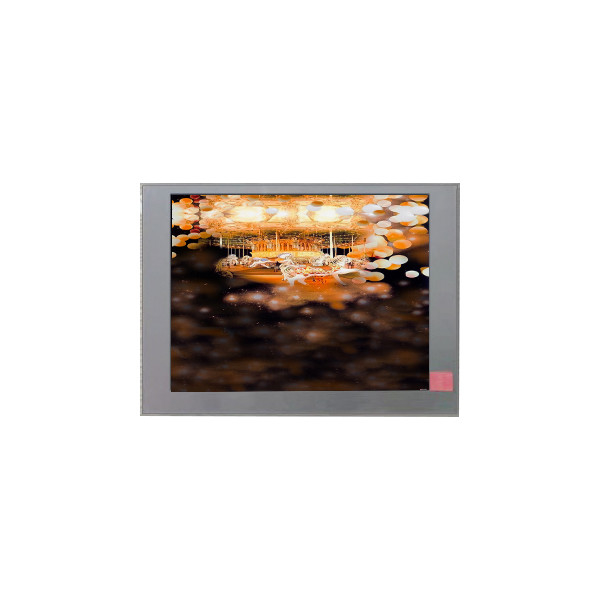

• TM059YDH03 5.9 inch 480*800 lcd Screen display panel For Mobile Phone
TM059YDH03 5.9 inch 480*800 lcd Screen display panel For Mobile Phone

TM059YDH03 5.9 inch 480*800 lcd Screen display panel For Mobile Phone

Product Details:

Place of Origin: China
Brand Name: TIANMA
Model Number: TM059YDH03

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: TM059YDH03 Diagonal Size: 5.9"
Panel Type: A-Si TFT-LCD, LCM Resolution: 480(RGB)×800, WVGA 158PPI
Pixel Format: RGB Vertical Stripe Active Area: 74.88(W)×129.24(H) Mm
Designed For: Mobile Phone Support Color: 16.7M 50%NTSC
Interface Type: Parallel RGB (1 Ch, 8-bit) + SPI, 51 PinsFPC Environment: Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 80 °C

Product Description

TM059YDH03 5.9 inch 480*800 lcd Screen display panel For Mobile Phone



TM059YDH03 LCD Panel Product details :



Brand TIANMA
Model P/N TM059YDH03
Diagonal Size 5.9"
Panel Type a-Si TFT-LCD, LCM
Resolution 480(RGB)×800, WVGA 158PPI
Pixel Format RGB Vertical Stripe
Active Area 74.88(W)×129.24(H) mm
Bezel Opening 75.88(W)×130.24(H) mm
Outline Dim. 84.28(H)×143.94(V)×3(D) mm
Treatment Antiglare
Luminance 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
View Direction 12 o'clock
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M 50%NTSC
Light Source WLED [3S2P], 15K hours, W/O Driver
Weight TBD
Designed For Mobile Phone
Frame Rate 60Hz
Touch Panel Without
Interface Type Parallel RGB (1 ch, 8-bit) + SPI, 51 pinsFPC
Power Supply 2.8/2.8V (Typ.)(VDD1VDD3)
Environment Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 80 °C



TM059YDH03 LCD Panel Shipping and Package :

TM059YDH03 5.9 inch 480*800 lcd Screen display panel For Mobile Phone 0



TM059YDH03 LCD Screen Shipping Information :



Tracking Number Update:
If your tracking number shows no logistics information, it could be due to delays in updates from logistics companies handling numerous parcels. Please reach out to us immediately instead of opening a dispute. We are committed to resolving any issues promptly and ensuring your satisfaction.



Time of Shipment:
We aim to ship all products within 1-5 weekdays. Our packing and shipping process is tailored to customer orders and involves thorough quality checks before dispatch. Therefore, a brief handling period is required to ensure product quality.



Delivery Time:
Unforeseen circumstances like hurricanes or rainstorms may affect logistics, causing delays. We assure you that we are honest sellers who prioritize your satisfaction. Kindly allow the logistics company adequate processing time to deliver your package to you.



Local Post Office Handling:
If your logistics information indicates that the package has reached the local post office but you haven't been contacted, please proactively reach out to your local post office to arrange for package collection. Failure to do so may result in the parcel being returned, and any consequences will be the buyer's responsibility.



Protection Time Extension:
Should the product protection period expire after we've shipped your item, please extend the protection period by contacting us promptly.



Import Duties:
Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These additional costs are the responsibility of the buyer. We advise buyers to be aware of their country's import regulations and associated fees before making a purchase.


TM059YDH03 LCD Screen Quality & Warranty :



Quality Assurance: We ensure the quality of all LCD (touch screen) products through comprehensive testing using specialized equipment. Our commitment is to deliver only products of the highest quality. We understand that any issues with the product become our responsibility, and we strive to prevent such occurrences.


Product Dissatisfaction: In the event that you are dissatisfied with our products, we kindly request that you notify us within 3 days of receiving your parcel. To facilitate the resolution process, please provide real pictures and other evidence showcasing the issue. Upon verification, we will offer either a replacement or refund if the products do not meet the described specifications.


Return Policy: If you have possessed the item for more than 7 days, it is deemed used or second-hand. Under these circumstances, we can only provide a replacement service after receiving the returned item.


TM059YDH03 LCD Panel FAQ :



Q: If I place order now,when will you ship the goods of TM059YDH03 ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Can I pay my order of TM059YDH03 via credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: Can You declare my order of TM059YDH03 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



Q: How long will I receive my goods TM059YDH03 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



TM059YDH03 LCD Screen Service Hours :



For any inquiries or issues, please feel free to contact us. We are dedicated to providing sincere service to our customers. Our service hours follow Beijing time:



Weekdays:
Morning: 8:00 AM to 12:00 PM
Afternoon: 1:30 PM to 6:10 PM


Additionally, we have customer service available 24 hours to assist you with problem-solving. Please don't hesitate to reach out to us whenever you need assistance.
