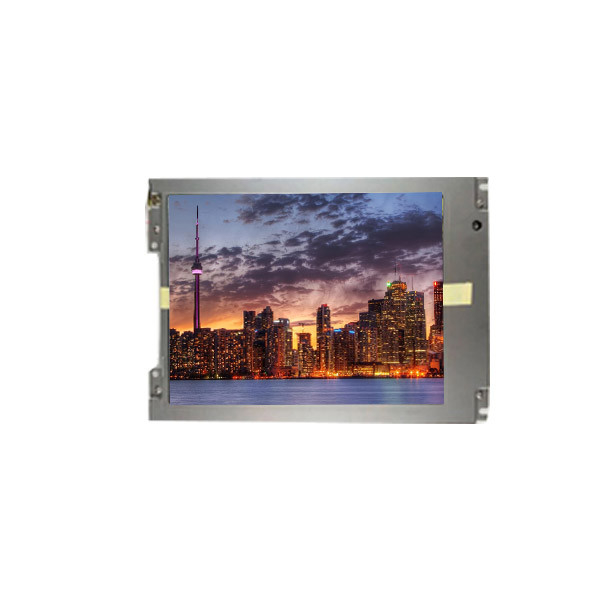

LM150X07-A4M1 LCD Screen Display Panel 15.0 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM150X07-A4M1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM150X07-A4M1 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Used For: | Desktop Monitor | Refresh Rate: | 60Hz |
Product Description
LM150X07-A4M1 LCD Screen Display Panel 15.0 Inch
LM150X07-A4M1 Product details :
| Brand | LG |
| Model P/N | LM150X07-A4M1 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 331.3(W)×257.9(H)×11.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/45/45 (Typ.)(CR≥10) |
| Response | 7/18 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60%NTSC |
| Backlight | 2 pcsCCFL, 40K hours, No Driver |
| Mass | 950g (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | TTL (2 ch, 6-bit), 60 pinsConnector |
| Voltage Supply | 5.0V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM150X07-A4M1 LCD Screen Display Panel 15.0 Inch | |
