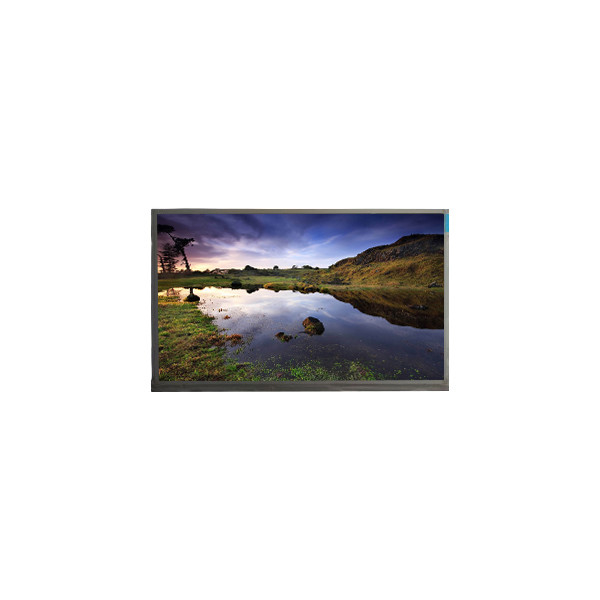

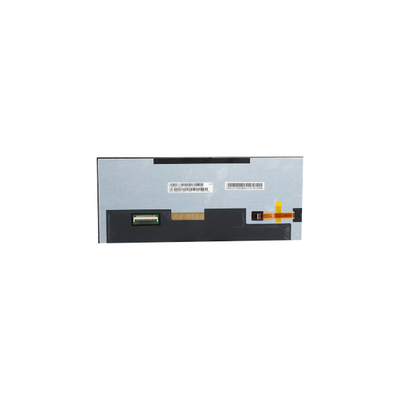

M102AWF2 R1 10.3 inch 1920*720 TFT-lcd Screen display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M102AWF2 R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M102AWF2 R1 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 200PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 243.65(W)×91.37(H) Mm |
| Brightness: | 800 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Designed For: | Automotive Display | Frequency: | 60Hz |
Product Description
M102AWF2 R1 10.3 inch 1920*720 TFT-lcd Screen display panel
M102AWF2 R1 LCD Panel Product details :
| Brand | IVO |
| Model P/N | M102AWF2 R1 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.65(W)×91.37(H) mm |
| Bezel Opening | 245.65(W)×93.66(H) mm |
| Outline Dim. | 262.04(W)×110.3(H)×12.2(D) mm |
| Luminance | 800 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 72% NTSC |
| Weight | 380g (Max.) |
| Frame Rate | 60Hz |
| Treatment | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED [8S3P] , 10K hours , W/O Driver |
| Designed For | Automotive Display |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C; Storage Temperature: -40 ~ 90 °C; Vibration Level: 3.0G (29.4 m/s²) |
M102AWF2 R1 LCD Panel Shipping and Package :
M102AWF2 R1 LCD Screen Shipping Information :
Tracking Number Update:
If your tracking number shows no logistics information, it could be due to delays in updates from logistics companies handling numerous parcels. Please reach out to us immediately instead of opening a dispute. We are committed to resolving any issues promptly and ensuring your satisfaction.
Time of Shipment:
We aim to ship all products within 1-5 weekdays. Our packing and shipping process is tailored to customer orders and involves thorough quality checks before dispatch. Therefore, a brief handling period is required to ensure product quality.
Delivery Time:
Unforeseen circumstances like hurricanes or rainstorms may affect logistics, causing delays. We assure you that we are honest sellers who prioritize your satisfaction. Kindly allow the logistics company adequate processing time to deliver your package to you.
Local Post Office Handling:
If your logistics information indicates that the package has reached the local post office but you haven't been contacted, please proactively reach out to your local post office to arrange for package collection. Failure to do so may result in the parcel being returned, and any consequences will be the buyer's responsibility.
Protection Time Extension:
Should the product protection period expire after we've shipped your item, please extend the protection period by contacting us promptly.
Import Duties:
Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These additional costs are the responsibility of the buyer. We advise buyers to be aware of their country's import regulations and associated fees before making a purchase.
M102AWF2 R1 LCD Screen Quality & Warranty :
Quality Assurance: We ensure the quality of all LCD (touch screen) products through comprehensive testing using specialized equipment. Our commitment is to deliver only products of the highest quality. We understand that any issues with the product become our responsibility, and we strive to prevent such occurrences.
Product Dissatisfaction: In the event that you are dissatisfied with our products, we kindly request that you notify us within 3 days of receiving your parcel. To facilitate the resolution process, please provide real pictures and other evidence showcasing the issue. Upon verification, we will offer either a replacement or refund if the products do not meet the described specifications.
Return Policy: If you have possessed the item for more than 7 days, it is deemed used or second-hand. Under these circumstances, we can only provide a replacement service after receiving the returned item.
Q: Can you tested the M102AWF2 R1 before shipping ?
A: Of course , our lcd panel M102AWF2 R1 was Strictly tested before shipping.
Q: How to order M102AWF2 R1 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel M102AWF2 R1 received can't work ?
A:M102AWF2 R1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
