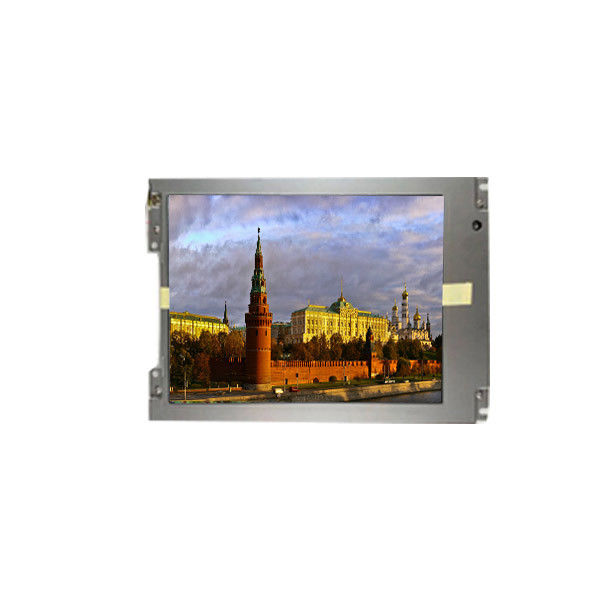

LM150X06-C3 LCD Display Panel 1024*768 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM150X06-C3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM150X06-C3 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Light Source: | CCFL [2 Pcs] , 40K Hours , W/O Driver | Used For: | Desktop Monitor |
Product Description
LM150X06-C3 LCD Display Panel 1024*768 LCD Screen Module
LM150X06-C3 Product details :
| Brand | LG |
| Model P/N | LM150X06-C3 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Dim. | 331.3(W)×257.9(H)×11.5(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) |
| Support Color | 262K 60% NTSC |
| Weight | 1.00/1.05Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 7.5/12.5 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [2 pcs] , 40K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | TTL (2 ch, 6-bit)60 pins Connector |
| Power Supply | 3.3/5.0V (Typ.)(VI/VDD) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| LM150X06-C3 LCD Display Panel 1024*768 LCD Screen Module | |
LM150X06-C3 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
LM150X06-C3 Shippment & Packing :
LM150X06-C3 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LM150X06-C3 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
LM150X06-C3 FAQ:
Q: Do you accept sample orders of LM150X06-C3 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LM150X06-C3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LM150X06-C3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
