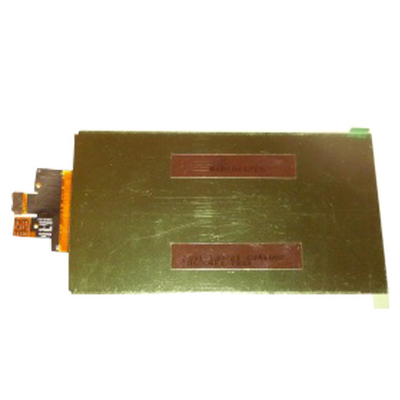

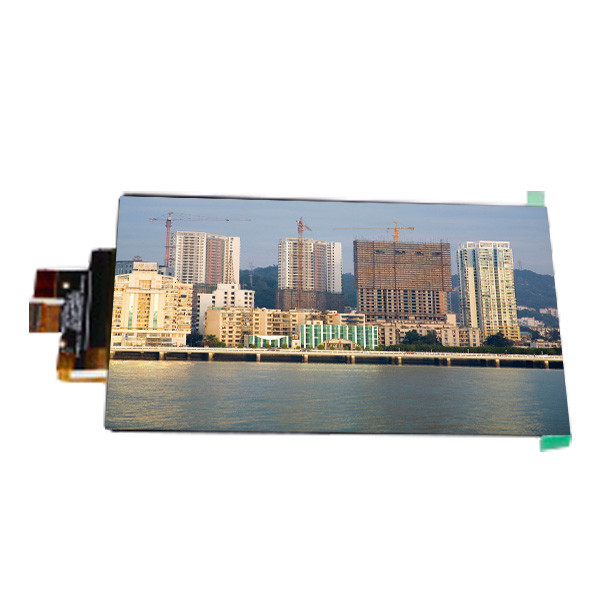

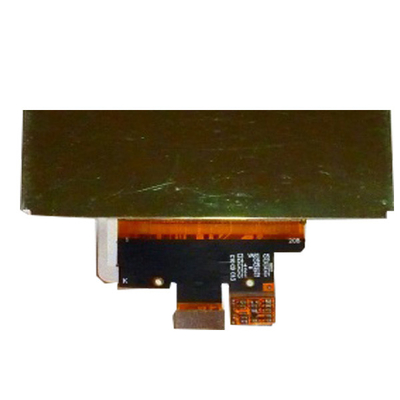

LCD Screen 5.2 inch LH520WF1-SD01 LCD Panel for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LH520WF1-SD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LH520WF1-SD01 | Diagonal Size: | 5.2" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, Assembly | Resolution: | 1080(RGB)×1920, FHD 423PPI |
| Pixel Format: | RGB Vertical Stripe | Used For: | Mobile Phone |
Product Description
LCD Screen 5.2 inch LH520WF1-SD01 LCD Panel for Mobile Phone
LH520WF1-SD01 Product details :
| Brand | LG Display |
| Model P/N | LH520WF1-SD01 |
| Diagonal Size | 5.2" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 1080(RGB)×1920, FHD 423PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×115.2(H) mm |
| Bezel Opening | - |
| Outline(mm) | 69.4(W)×136.4(H)×2.47(D) |
| Luminance | 380 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 70% NTSC |
| Mass | 36.7±3.7g |
| Refresh Rate | 60Hz |
| Treatment | Clear |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Work Mode | - |
| Response | 35 (Max.)(Tr+Td) ms |
| Backlight | 6S2P WLED, No Driver |
| Used for | Mobile Phone |
| Touchscreen | PCAP |
| Signal Type | MIPI (4 data lanes), 30 pins Connector |
| Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Max. Ratings | Storage Temp.: -40 ~ 100 °C Operating Temp.: -30 ~ 85 °C |
| LCD Screen 5.2 inch LH520WF1-SD01 LCD Panel for Mobile Phone | |
