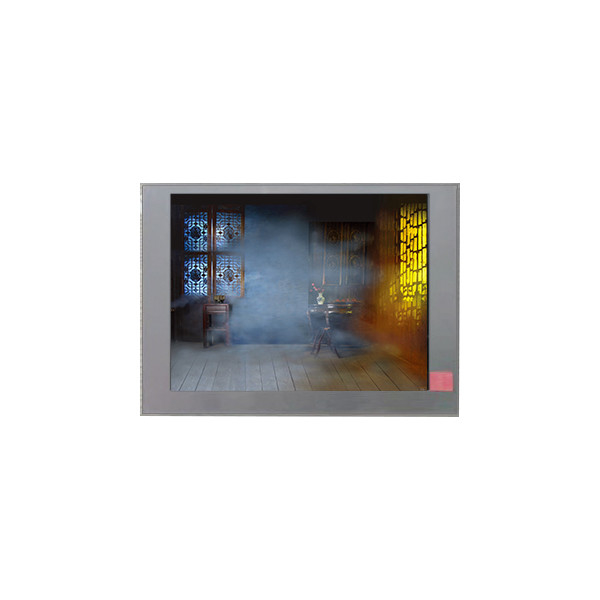

5.8 inch 1280*768 TM058JFHG02 LCD display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM058JFHG02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM058JFHG02 | Diagonal Size: | 5.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 1280(RGB)×768, WXGA 257PPI |
| Pixel Format: | RGB Vertical Stripe | Outline Size: | 126.72(W)×74.88(H) Mm |
| Color Depth: | 262K | Backlight: | No B/L |
| Used For: | Projector | Refresh Rate: | 60Hz |
Product Description
5.8 inch 1280*768 TM058JFHG02 LCD display panel
TM058JFHG02 Product details :
| Brand | TIANMA |
| Model P/N | TM058JFHG02 |
| Diagonal Size | 5.8" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1280(RGB)×768, WXGA 257PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 126.72(W)×74.88(H) mm |
| Bezel Opening | - |
| Outline Size | 137.49(W)×84.7(H)×1.21(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | - |
| Viewing Angle | - |
| Response | - |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | - |
| Color Depth | 262K |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Projector |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Suggest COG HX8286-A01*3 + HX8695-B01*1 |
| Signal Type | Mini LVDS, 60 pinsFPC |
| Voltage Supply | 3.3/10.9/20/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
TM058JFHG02 Packaging Details:
We understand the importance of protecting your ordered product during international shipping. To ensure its safe delivery, we utilize a comprehensive packaging approach that includes the following protective measures:
Anti-Static Bag:
The product will be carefully placed in an anti-static bag. This bag provides electrostatic discharge protection, safeguarding the components from any potential damage caused by static electricity.
Anti-Shock Bubble Bag:
To further protect the product from potential impacts and shocks during transit, we use an anti-shock bubble bag. This bag provides an additional layer of cushioning, minimizing the risk of damage from external forces.
Clean Carton Box:
The product, along with the anti-static bag and anti-shock bubble bag, will be placed in a clean and sturdy carton box. The carton box provides structural integrity and serves as an additional layer of protection against potential mishandling.
Foam Padding:
To further enhance the protection, foam padding will be used inside the carton box. The foam padding absorbs shocks and vibrations, ensuring that the product remains securely in place and protected from any potential impact.
By employing this packaging strategy, we aim to minimize the risk of damage to the product during international shipping. Our goal is to ensure that the product arrives in excellent condition, ready for your use and satisfaction.
Please note that we take great care in packaging your ordered product, but it is essential to handle the package with care upon receipt. If you notice any visible signs of damage to the outer packaging, we recommend inspecting the product thoroughly before accepting the delivery. If any damage is found, please inform the delivery personnel and contact our customer service immediately for further assistance.
We appreciate your trust in our packaging practices, and we remain committed to delivering your ordered product in optimal condition.Should you have any questions or concerns, please feel free to reach out to us.
TM058JFHG02 Shipping and Package :
TM058JFHG02 Warranty Service:
We are committed to providing excellent customer service and ensuring your satisfaction with your purchase. Please familiarize yourself with the following warranty service details:
Return Policy:
We accept returns within 15 days from the date of delivery. If you wish to return an item, kindly contact us within this timeframe to initiate the return process.
Defective Items:
In the event that you receive a defective item, we offer the option to exchange the item for a replacement or provide a full refund upon your request. We understand the importance of receiving products in good working condition and aim to address any defects promptly.
Non-Defective Items:
For non-defective items that you wish to return, please note that the buyer is responsible for covering the return shipping costs. We kindly ask you to carefully consider your purchase and ensure compatibility and suitability before placing an order.
Return Condition:
To facilitate a smooth return process, it is important to return the item in its original packaging with all accompanying supplies, such as cables, manuals, and accessories. This will help ensure that the return is processed efficiently and that you receive the appropriate resolution.
Customer Satisfaction:
Our ultimate goal is to achieve 100% customer satisfaction. We strive to address any concerns or issues you may have promptly and fairly. If you have any questions or require assistance, please do not hesitate to contact our customer service team. We are here to help and ensure your satisfaction with your purchase.
We value your trust in our products and services. Our warranty service is designed to provide you with peace of mind and support should any issues arise with your purchase. Thank you for choosing us, and we look forward to serving you.
TM058JFHG02 FAQ:
Q: How do you ship my goods TM058JFHG02 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of TM058JFHG02 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel TM058JFHG02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
