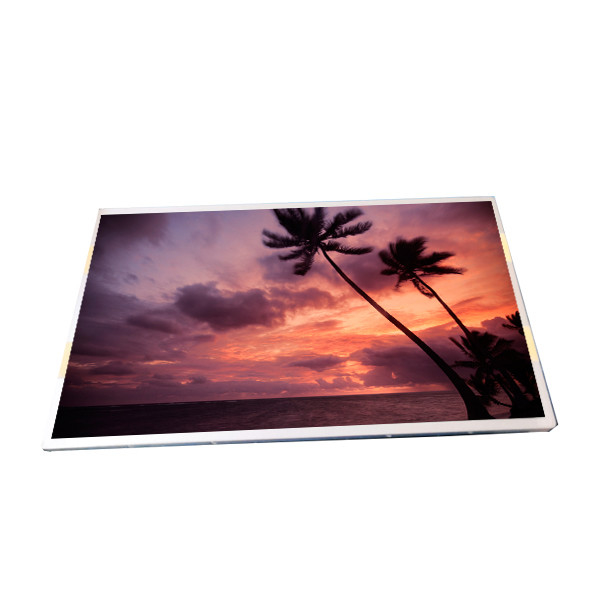

13.3 inch B133HAB01.0 HW4A LCD Screen Display Panel

Brand Name:	AUO
Model Number:	B133HAB01.0 HW4A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B133HAB01.0 HW4A

Diagonal Size:

13.3"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1920(RGB)×1080, FHD 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

293.472(W)×165.078(H) Mm

Application:

Laptop

Lamp Type:

WLED , 15K Hours , With LED Driver

View Direction:

Symmetry

Response Time:

25 (Typ.)(Tr+Td)

Supply Ability:

100000 Unit/Units per Month

Product Description

13.3 inch B133HAB01.0 HW4A LCD Screen Display Panel

B133HAB01.0 HW4A LCD Panel Product details :

Brand	AUO
Model P/N	B133HAB01.0 HW4A
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1920(RGB)×1080, FHD 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.472(W)×165.078(H) mm
Bezel Opening	-
Outline Dim.	317(H)×208(V) ×4.2(D) mm
Treatment	Anti-Scatter, Hard coating (7H)
Luminance	220 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	262K 45% NTSC
Light Source	WLED , 15K hours , With LED Driver
Form Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, I²C/USB
Interface Type	eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

B133HAB01.0 HW4A LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

B133HAB01.0 HW4A LCD Panel Shipping and Package :

B133HAB01.0 HW4A LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

B133HAB01.0 HW4A LCD Panel Acceptable returns and exchanges:

✅ Quality issue (7-30 day no reason return or exchange, depending on product category)
Bright spots, dark spots, and bad spots appear on the screen (exceeding industry standards, such as ISO 9241-307 Class II)
Display abnormalities (flicker, color cast, uneven backlight, residual image, etc.)
Physical damage (non-human damage, such as internal cable breakage, panel fragmentation)
Interface malfunction (HDMI/eDP/LVDS interface cannot recognize signals properly)

✅ Transportation damage (feedback within 48 hours after receipt)
Severe damage to the outer packaging (such as cardboard box rupture, obvious compression deformation)
Screen breakage and leakage (requires unboxing inspection video)

✅ Wrong/missed delivery (feedback within 7 days)
The received model, size, and interface do not match the order
Missing accessories (such as screws, cables, driver boards, etc.)

B133HAB01.0 HW4A LCD Panel FAQ :

Q: Can you test the lcd panel B133HAB01.0 HW4A before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order B133HAB01.0 HW4A ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order B133HAB01.0 HW4A ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd B133HAB01.0 HW4A ?

A: 90 days .
