LCD Screen Display Panel

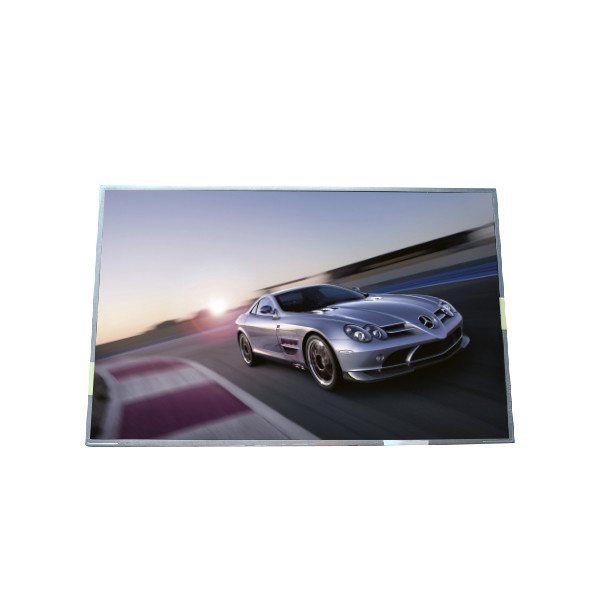

C090XAC01.0 9.0 inch 768*1024 LCD Screen For Automotive Display

All Category

Floor Standing Digital Signage

C090XAC01.0 9.0 inch 768*1024 LCD Screen For Automotive Display

Brand Name:	AUO
Model Number:	C090XAC01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C090XAC01.0

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

768(RGB)×1024, XGA 141PPI

Lamp Type:

WLED [10S3P] , W/O Driver

Application:

Automotive Display

View Direction:

Symmetry

Luminance:

600 Cd/m² (Min.)

Response Time:

20 (Max.)(Tr+Td)

Operating Mode:

AHVA, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

C090XAC01.0 9.0 inch 768*1024 LCD Screen For Automotive Display

C090XAC01.0 LCD Panel Product details :

Brand	AUO
Model P/N	C090XAC01.0
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	768(RGB)×1024, XGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	138.24(W)×184.32(H) mm
Bezel Opening	146.36(W)×189(H) mm
Outline Dim.	159.36(H)×198.5(V)×16.8(D) mm
Treatment	Anti Fingerprint + Antiglare, Reflection 2.5% (Max.)
Luminance	600 cd/m² (Min.)
Contrast Ratio	1000:1 (Min.) (TM)
View Direction	Symmetry
Response Time	20 (Max.)(Tr+Td)
Viewing Angle	70/70/70/70 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M
Light Source	WLED [10S3P] , W/O Driver
Weight	400±10g
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) , 40 pins FPC
Power Supply	3.3/13.5/18/-9V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C

C090XAC01.0 LCD Panel payment method:

PayPal is our preferred payment method, as it is the fastest, simplest, and most secure way to pay for goods or services online. PayPal provides protection for buyers and sellers in case of any issues. In addition, we also support T/T, Payment methods such as Western Union.
Order verification: Once you place an order, we will promptly review your purchase details to ensure everything is correct and there are no discrepancies.
The price does not include tariffs. Different countries may require buyers to clear customs and pay tariffs.

C090XAC01.0 LCD Panel Shipping and Package :

C090XAC01.0 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

C090XAC01.0 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

C090XAC01.0 LCD Panel FAQ :

Q: Can You declare my order of C090XAC01.0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of C090XAC01.0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of C090XAC01.0 ?

A: Of course!If you make a large order, we will give you a discount.
