LCD Screen Display Panel

M238HVN01.00D 00C 23.8 inch 1920*1080 LCD Screen Display

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

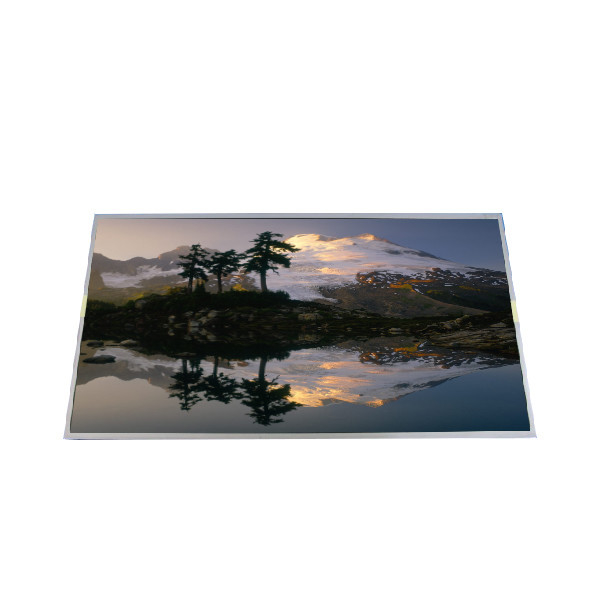

M238HVN01.00D 00C 23.8 inch 1920*1080 LCD Screen Display

Brand Name:	AUO
Model Number:	M238HVN01.00D 00C
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HVN01.00D 00C

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Application:

Desktop Monitor

Lamp Type:

WLED [17S4P] , 30K Hours , W/O Driver

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Support Color:

16.7M 72% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

M238HVN01.00D 00C 23.8 inch 1920*1080 LCD Screen Display

M238HVN01.00D 00C LCD Panel Product details :

Brand	AUO
Model P/N	M238HVN01.00D 00C
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	530.2(W)×299.6(H) mm
Outline Dim.	543(H)×317.4(V) ×11.7(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	3000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	10/16 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	VA, Normally Black, Transmissive
Support Color	16.7M 72% NTSC
Light Source	WLED [17S4P] , 30K hours , W/O Driver
Weight	2.28±0.08Kgs
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M238HVN01.00D 00C LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

M238HVN01.00D 00C LCD Panel Shipping and Package :

M238HVN01.00D 00C LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

M238HVN01.00D 00C LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

M238HVN01.00D 00C LCD Panel FAQ :

Q: Can you tested the M238HVN01.00D 00C before shipping ?

A: Of course , our lcd panel M238HVN01.00D 00C was Strictly tested before shipping.

Q: How to order M238HVN01.00D 00C ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel M238HVN01.00D 00C received can't work ?

A:M238HVN01.00D 00C was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
