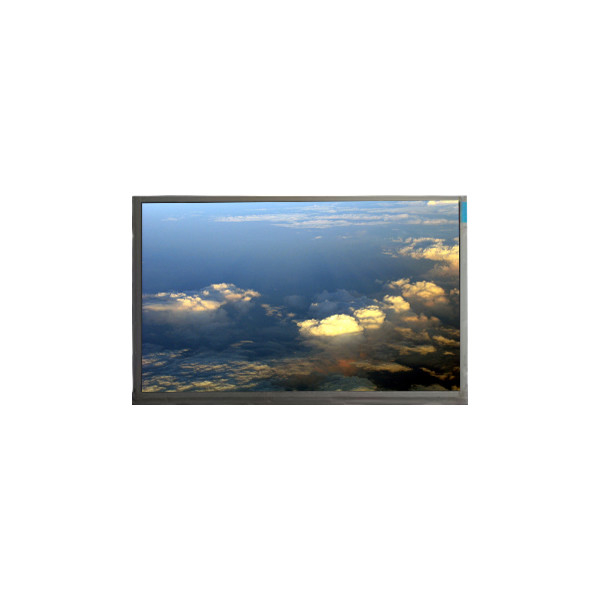

M215HJJ-L01 21.5 inch LCD Display Panel 1920*1080 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M215HJJ-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215HJJ-L01 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Designed For: | Desktop Monitor |
| Color Depth: | 16.7M 72% NTSC | Work Mode: | MVA, Normally Black, Transmissive |
| Interface Type: | LVDS (2 Ch, 8-bit)30 Pins Connector | Power Supply: | 5.0V (Typ.) |
Product Description
M215HJJ-L01 21.5 inch LCD Display Panel 1920*1080 LCD Screen Module
M215HJJ-L01 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | M215HJJ-L01 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | 479.84(W)×271.3(H) mm |
| Outline Dim. | 495.6(W)×292.2(H)×13.45(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 72% NTSC |
| Weight | 1.91/2.10Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Response Time | 20/5 (Typ.)(Tr/Td) |
| Operating Mode | MVA, Normally Black, Transmissive |
| Light Source | WLED, 40K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
