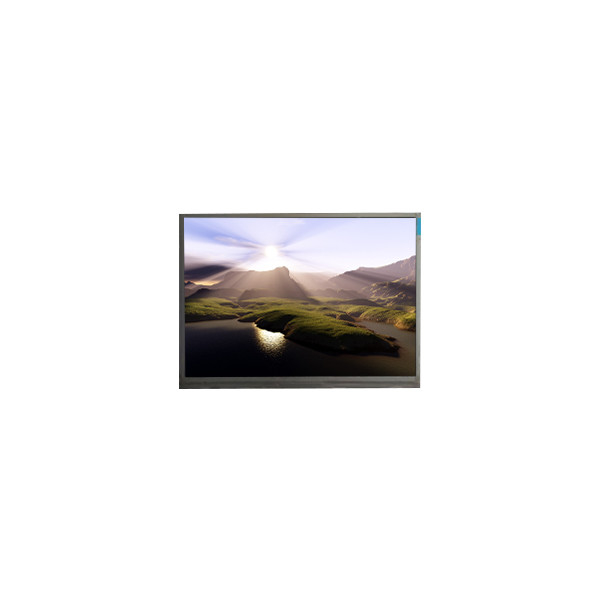

6.4 inch F064A06-6T1 720*1544 LCD Screen Panel

Brand Name:	Innolux
Model Number:	F064A06-6T1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F064A06-6T1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1544 267PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.256(W)×146.371(H) Mm

Designed For:

Mobile Phone

Support Color:

16.7M 68%NTSC

Transmissivity:

3.64% (Typ.)

Touch Screen:

In-Cell Touch, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

6.4 inch F064A06-6T1 720*1544 LCD Screen Panel

F064A06-6T1 LCD Panel Product details :

Brand	Innolux
Model P/N	F064A06-6T1
Diagonal Size	6.4"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1544 267PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.256(W)×146.371(H) mm
Bezel Opening	-
Outline Size	70.256(W)×151.971(H)×0.3(D) mm
Brightness	0 cd/m²
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.15+0.15 mm
Display Colors	16.7M 68%NTSC
Frequency	60Hz
Weight	-
Surface	-
Contrast Ratio	1500:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	35 (Typ.)(Tr+Tf)
Transmissivity	3.64% (Typ.)
Lamp Type	No B/L
Touch Screen	In-Cell Touch, I²C
Application	Mobile Phone
Driver IC	COGSuggest NT36525, ILI9881H, HX83102-B, NT36525B
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

F064A06-6T1 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

F064A06-6T1 LCD Panel Shipping and Package :

F064A06-6T1 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

F064A06-6T1 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

F064A06-6T1 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of F064A06-6T1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods F064A06-6T1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can You declare my order of F064A06-6T1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
