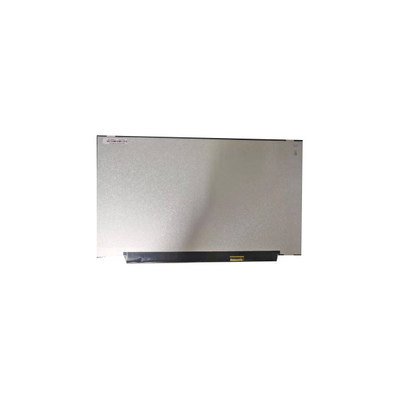

MC156CS01-3 15.6 inch 1920*1080 LCD Screen for Laptop

Brand Name:	HKC
Model Number:	MC156CS01-3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MC156CS01-3

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 141PPI

Pixel Format:

RGB Vertical Stripe

Designed For:

Laptop、Industrial

Active Area:

344.16(W)×193.59(H) Mm

Outline Size:

350.66(W)×214.14(H)×3(D) Mm

Brightness:

300 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

MC156CS01-3 15.6 inch 1920*1080 LCD Screen for Laptop

MC156CS01-3 LCD Panel Product details :

Brand	HKC
Model P/N	MC156CS01-3
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Size	350.66(W)×214.14(H)×3(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	HIS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	20 (Typ.)(G to G)
Display Colors	16.7M 45%NTSC
Lamp Type	6 stringsWLED, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Application	Laptop,Industrial
Signal Interface	eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
MC156CS01-3 NEW 15.6 inch 1920*1080 LCD screen FOR HKC

MC156CS01-3 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

MC156CS01-3 LCD Panel Shipping and Package :

MC156CS01-3 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

MC156CS01-3 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

MC156CS01-3 LCD Panel FAQ :

Q: How to make payment of MC156CS01-3 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of MC156CS01-3 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of MC156CS01-3 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .
