LCD Screen Display Panel

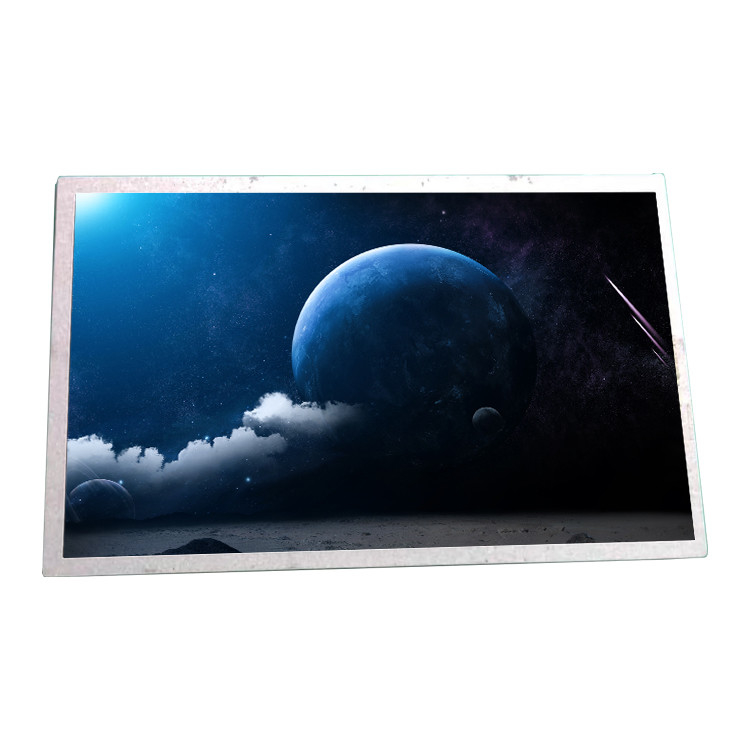

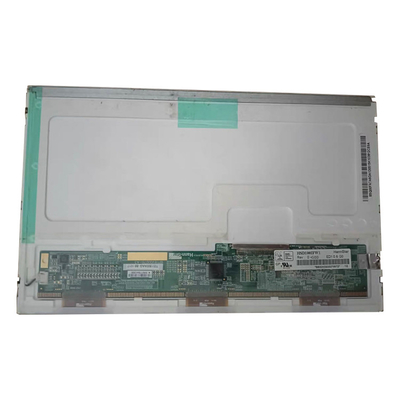

HSD100IFW1-G00 10.1 inch 1024*600 lcd panel display

All Category

Floor Standing Digital Signage

HSD100IFW1-G00 10.1 inch 1024*600 lcd panel display

Brand Name:	HannStar
Model Number:	HSD100IFW1-G00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD100IFW1-G00

Diagonal Size:

10.1"

Resolution:

1024(RGB)×600, WSVGA 118PPI

Active Area:

220.416(W)×129.15(H) Mm

Bezel Opening:

223.42(W)×132.15(H) Mm

Outline Dim.:

235(W)×145.8(H)×5.8(D) Mm

Treatment:

Antiglare, Hard Coating (3H)

Viewing Angle:

70/70/50/60 (Typ.)(CR≥10)

Designed For:

Netbook PC / Digital Photo Frame / Portable DVD Player

Interface Type:

LVDS (1 Ch, 8-bit) , 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD100IFW1-G00 10.1 inch 1024*600 lcd display panel display

HSD100IFW1-G00 LCD Panel Product details :

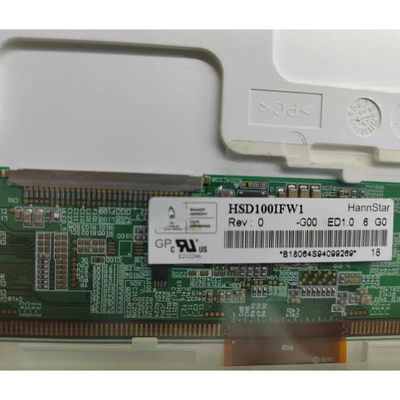

HannStar LCD Screen HSD100IFW1-G00
Panel Brand	HannStar
Model P/N	HSD100IFW1-G00
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	220.416(W)×129.15(H) mm
Bezel Opening	223.42(W)×132.15(H) mm
Outline Dim.	235(W)×145.8(H)×5.8(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	5/20 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.2M
Light Source	WLED , With LED Driver
Designed For	Netbook PC / Digital Photo Frame / Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
HSD100IFW1-G00 10.1 inch 1024*600 lcd display panel display

Notice for HSD100IFW1-G00 LCD Panel Purchase :

Before placing your order, please review the following details carefully:

Compatibility Check: Ensure that the screen size, resolution, backlight type, interface type, and mounting location of the HSD100IFW1-G00 LCD panel are compatible with your machine or device. If you are unsure about compatibility, feel free to reach out to us for assistance and guidance.

Contact Information: Provide accurate and up-to-date contact details during the ordering process. This will help ensure prompt delivery of your items.

Customs Declaration: If you wish for us to declare a lower value on the shipment to potentially reduce customs taxes, please inform us in advance. However, please be aware that opting for a lower declared value carries the risk of increased liability for customs-related issues, which you would need to assume.

HSD100IFW1-G00 LCD Panel Shipping and Package :

HSD100IFW1-G00 LCD Panel Shipping Options :

Courier Express: We offer shipping via Courier Express, which typically takes 4-7 working days for delivery. If required, we can also recommend reliable and cost-effective shipping agents to assist with your shipment.

Express Companies: For faster delivery, we partner with leading express companies such as DHL, FedEx, TNT, UPS, and others. Delivery via these services usually takes 3-5 working days.

China Post Air Mail: If you prefer a more economical shipping method and can allow for longer delivery times, we also provide shipping via China Post Air Mail. Delivery times can vary but generally range from 15 to 35 days depending on your location.

Sea Shipment: For large volume orders or when cost efficiency is paramount, we offer sea shipment. Although this method takes longer, typically ranging from 20 to 30 days, it is an excellent choice for bulk orders where transit time is less critical.

We strive to offer flexible shipping options to meet your specific needs and budget.

HSD100IFW1-G00 LCD Panel Warranty Details :

We provide a comprehensive warranty for the HSD100IFW1-G00 LCD panel:

Warranty Period: All products are covered by a warranty period of six months from the date of purchase.

Exclusions: Please note that the warranty does not cover damage caused by human error or intentional damage (artificial damage). This includes mishandling, improper installation, or any other actions that lead to damage not attributable to product defects.

Special Warranty Labels: Each product is equipped with special warranty labels. It is crucial not to damage these labels, as they serve as proof of purchase and are required for warranty claims.

Warranty Claim Process: To make a warranty claim, ensure that the product's warranty label is intact and provide proof of purchase (such as an invoice or receipt). Without the warranty label, unfortunately, we cannot honor the warranty.

HSD100IFW1-G00 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of HSD100IFW1-G00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of HSD100IFW1-G00 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of HSD100IFW1-G00 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90days warranty .
