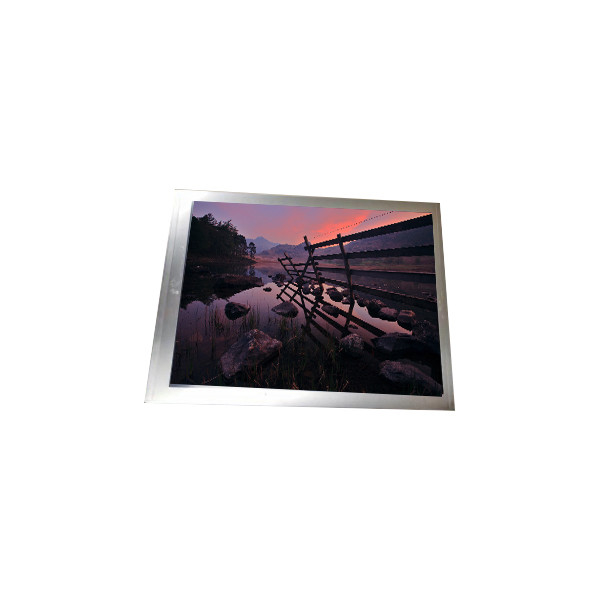

LX066A1BB02 6.5 inch LCD Display For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LX066A1BB02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LX066A1BB02 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , Q-CUT (Full Cell) | Resolution: | 720(RGB)×1612 269PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 67.932(W)×152.092(H) Mm |
| Outline Dim.: | 69.932(W)×156.56(H)×0.3(D) | Luminance: | 0 (cd/m²) |
| View Direction: | Symmetry | Designed For: | Mobile Phone |
Product Description
LX066A1BB02 6.5 inch LCD Display For Mobile Phone
LX066A1BB02 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LX066A1BB02 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1612 269PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.932(W)×152.092(H) mm |
| Bezel Opening | - |
| Outline Dim. | 69.932(W)×156.56(H)×0.3(D) |
| Treatment | - |
| Luminance | 0 (cd/m²) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | New Mode2, Normally Black, Transmissive |
| Glass Thickness | - |
| Transmissivity | 3.8% (Typ.) |
| Support Color | 16.7M 74% NTSC |
| Light Source | No B/L |
| Weight | 8.20g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | In-Cell Touch |
| Driver IC list | Suggest COG TD4160 |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
LX066A1BB02 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
LX066A1BB02 LCD Panel Shipping and Package :
LX066A1BB02 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
LX066A1BB02 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
LX066A1BB02 LCD Panel FAQ :
Q: How can I trace my order of LX066A1BB02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LX066A1BB02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LX066A1BB02 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LX066A1BB02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
