products details

Home > Products >

LCD Screen Display Panel

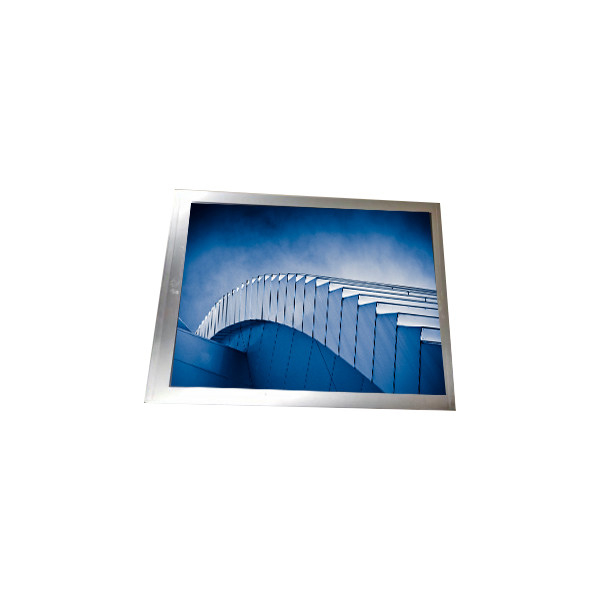

23.8 inch MV238QHM-NX1 2K LCD display panel

All Category

Floor Standing Digital Signage

23.8 inch MV238QHM-NX1 2K LCD display panel

Brand Name:	BOE
Model Number:	MV238QHM-NX1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV238QHM-NX1

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

526.848(W)×296.352(H) Mm

Outline Size:

535(W)×313(H) ×13.7(D) Mm

Brightness:

300 Cd/m² (Typ.)

Contrast Ratio:

1300:1 (Typ.) (TM)

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

23.8 inch MV238QHM-NX1 2K LCD display panel

MV238QHM-NX1 LCD Panel Product details :

Brand	BOE
Model P/N	MV238QHM-NX1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.848(W)×296.352(H) mm
Bezel Opening	-
Outline Size	535(W)×313(H) ×13.7(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(G to G)
Display Colors	16.7M 99% sRGB
Lamp Type	16S4P WLED , 30K hours , Without Driver
Frequency	100Hz
Touch Screen	Without
Weight	TBD
Application	Desktop Monitor
Signal Interface	LVDS (4 ch, 8-bit) , 70 pins Connector
Input Voltage	10.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

MV238QHM-NX1 LCD Display - Extremely Important Information:

Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.

Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.

100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.

For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.

MV238QHM-NX1 LCD Panel Shipping and Package :

23.8 inch MV238QHM-NX1 2K LCD display panel 0

MV238QHM-NX1 LCD Display SHIPPING :

We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .

The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.

MV238QHM-NX1 LCD Display Warranty:

Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.

Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.

However, it is imperative to ensure that the returned product is unused and free from any man-made damages.

Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.

Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.

MV238QHM-NX1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of MV238QHM-NX1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of MV238QHM-NX1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of MV238QHM-NX1 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of MV238QHM-NX1 ?

A: Of course!sample order is welcome !
