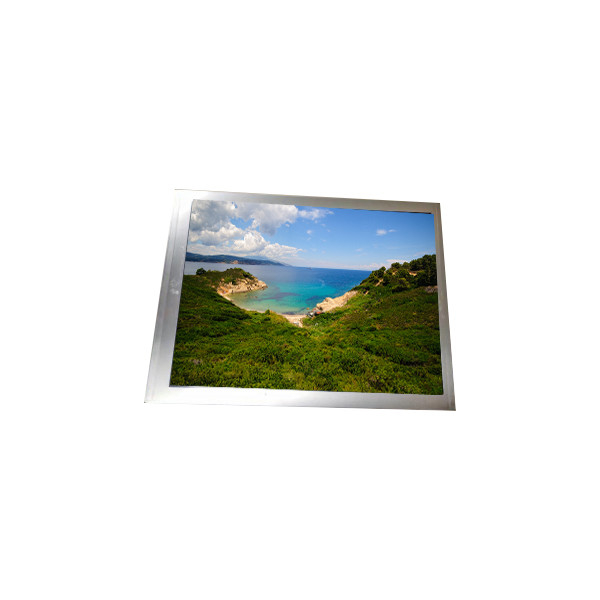

23.8 inch MV238QHB-NF0 LCD display 2560*1440 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238QHB-NF0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238QHB-NF0 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 526.08(W)×295.92(H) Mm |
| Outline Size: | 534.84(H)×308.16(V) ×1.23(D) Mm | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Frequency: | 165Hz | Application: | Desktop Monitor |
Product Description
23.8 inch MV238QHB-NF0 LCD display 2560*1440 LCD Screen
MV238QHB-NF0 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238QHB-NF0 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 526.08(W)×295.92(H) mm |
| Bezel Opening | - |
| Outline Size | 534.84(H)×308.16(V) ×1.23(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.50 mm |
| Transmittance | 2.5% (Typ.)(with Polarizer) |
| Best View on | Symmetry |
| Response Time | 5.x (Typ.)(G to G) |
| Display Colors | 16.7M 99% sRGB |
| Lamp Type | No B/L |
| Frequency | 165Hz |
| Touch Screen | Without |
| Weight | 2.30Kgs (Typ.) |
| Application | Desktop Monitor |
| D-IC Detail | COF Built-in 8 source chips |
| Signal Interface | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector |
| Input Voltage | 10.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
MV238QHB-NF0 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
MV238QHB-NF0 LCD Panel Shipping and Package :
MV238QHB-NF0 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
MV238QHB-NF0 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
MV238QHB-NF0 LCD Panel FAQ :
Q: Do you accept sample orders of MV238QHB-NF0 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of MV238QHB-NF0 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of MV238QHB-NF0 ?
A: The order will be shipped within 2-3 working days after received your payment.
