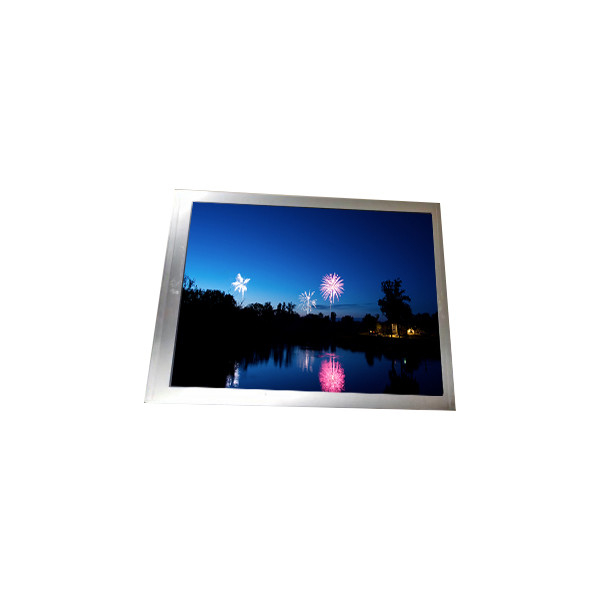

MV238FHB-NF1 23.8 inch 1080p LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHB-NF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHB-NF1 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Outline Size: | 534.84(W)×308.16(H) Mm | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Brightness: | 0 Cd/m² | Application: | Desktop Monitor /Gaming |
Product Description
MV238FHB-NF1 23.8 inch 1080p LCD Panel Display
MV238FHB-NF1 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHB-NF1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.84(W)×308.16(H) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Glass Depth | - |
| Transmissivity | 4.9% (Typ.)(with Polarizer) |
| Best View on | Symmetry |
| Response Time | 5 (Typ.)(G to G) |
| Display Colors | 16.7M 100% sRGB |
| Lamp Type | No B/L , Without Driver |
| Frequency | 180Hz |
| Touch Screen | Without |
| Panel Weight | 540g (Typ.) |
| Application | Desktop Monitor /Gaming |
| Driver IC | COFBuilt-in 4 source chips |
| Signal Interface | LVDS (4 ch, 8-bit) , 92 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
MV238FHB-NF1 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
MV238FHB-NF1 LCD Panel Shipping and Package :
MV238FHB-NF1 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
MV238FHB-NF1 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
MV238FHB-NF1 LCD Panel FAQ :
Q: Do you accept sample orders for MV238FHB-NF1 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of MV238FHB-NF1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for MV238FHB-NF1 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of MV238FHB-NF1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
