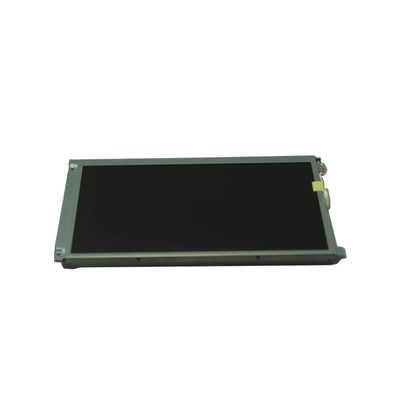

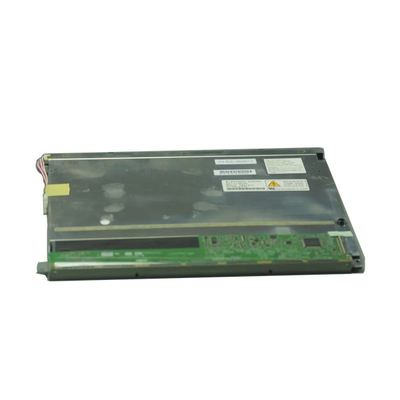

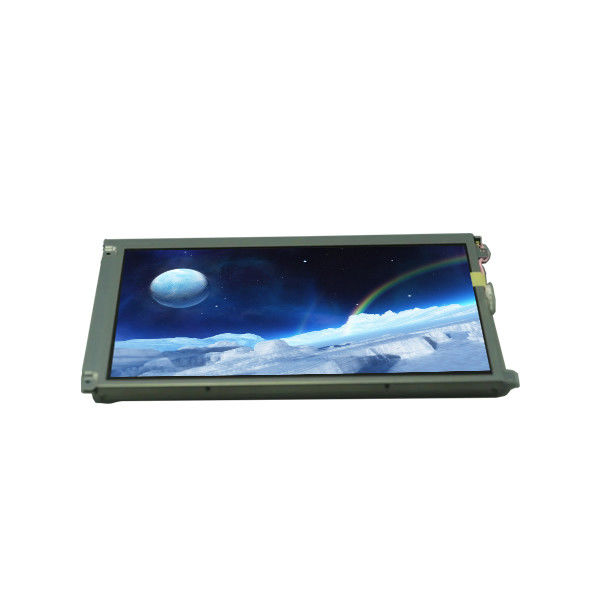

AA121SP06 12.1 inch 800*600 TFT-LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA121SP06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA121SP06 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 82PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 246(W)×184.5(H) Mm |
| Designed For: | Industrial | Touch Panel: | Without |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
Product Description
AA121SP06 LCD 12.1 inch 800*600 TFT-LCD Screen Display
AA121SP06 LCD Panel Product details :
| Brand | Mitsubishi |
| Model P/N | AA121SP06 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Dim. | 280(W)×210(H)×12.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 40%NTSC |
| Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
| Weight | 770g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| AA121SP06 LCD 12.1 inch 800*600 TFT-LCD Screen Display | |
