AA121SL11 12.1 inch 800*600 TFT-LCD Screen Display

All Category

Floor Standing Digital Signage

AA121SL11 12.1 inch 800*600 TFT-LCD Screen Display

Brand Name:	Mitsubishi
Model Number:	AA121SL11
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AA121SL11

Diagonal Size:

12.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 82PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

246(W)×184.5(H) Mm

Designed For:

Industrial

Touch Panel:

Without

Luminance:

350 Cd/m² (Typ.)

Contrast Ratio:

400:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

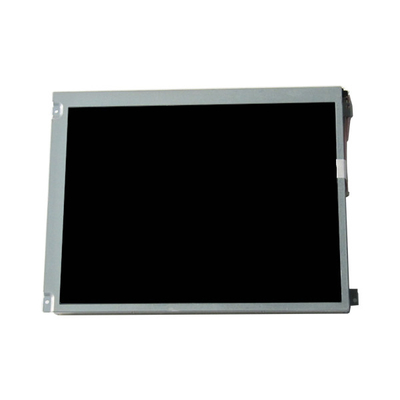

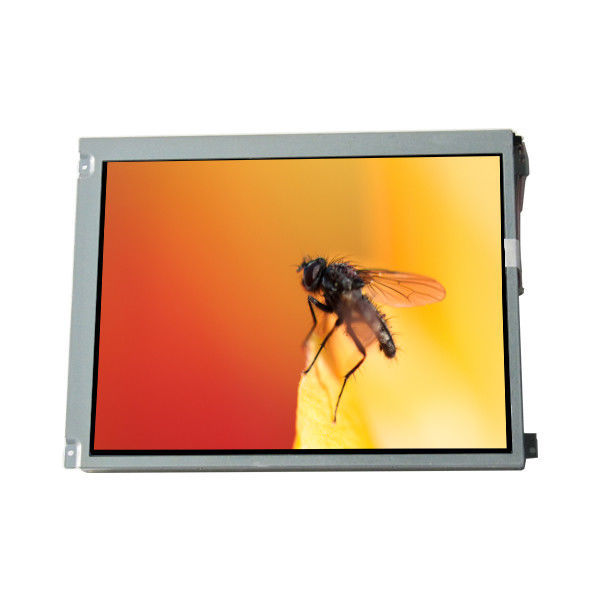

AA121SL11 LCD 12.1 inch 800*600 TFT-LCD Screen Display

AA121SL11 LCD Panel Product details :

Brand	Mitsubishi
Model P/N	AA121SL11
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	249.0(W)×187.5(H) mm
Outline Dim.	280(H)×210(V)mm
Treatment	Hard coating (2H), Antireflection
Luminance	350 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	6/19 (Typ.)(Tr/Td)
Viewing Angle	80/80/70/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [2 pcs], 50K hours, W/O Driver
Weight	720g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit), 41 pinsConnector
Power Supply	3.3V (Typ.)(VCC)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
AA121SL11 LCD 12.1 inch 800*600 TFT-LCD Screen Display

AA121SL11 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

AA121SL11 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

AA121SL11 LCD Panel Shipping and Package :

AA121SL11 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

AA121SL11 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of AA121SL11 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of AA121SL11 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of AA121SL11 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of AA121SL11 ?

A: Of course!sample order is welcome !
