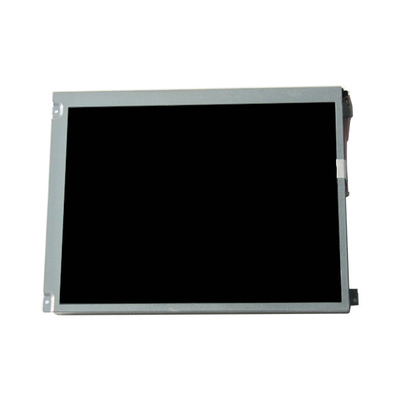

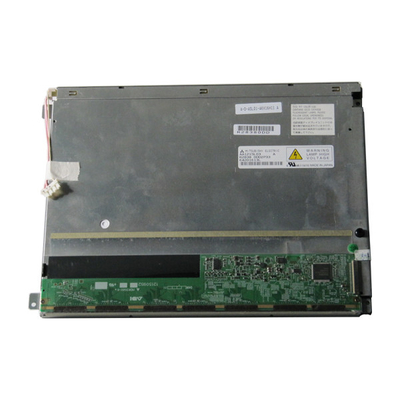

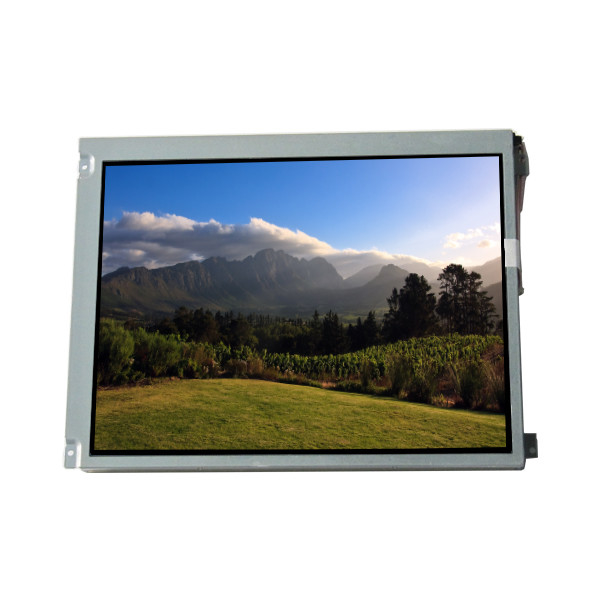

AA121SL03 12.1 inch 800*600 TFT-LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA121SL03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA121SL03 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 82PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 246(W)×184.5(H) Mm |
| Designed For: | Industrial | Touch Panel: | Without |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
Product Description
AA121SL03 LCD 12.1 inch 800*600 TFT-LCD Screen Display
AA121SL03 LCD Panel Product details :
| Brand | Mitsubishi |
| Model P/N | AA121SL03 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 280(W)×210(H)×12.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) |
| Response | 10/30 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40%NTSC |
| Backlight | 2 pcsCCFL, 50K hours, No Driver |
| Mass | 720g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA121SL03 LCD 12.1 inch 800*600 TFT-LCD Screen Display | |
AA121SL03 LCD Screen About Us:
At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.
In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.
As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.
Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.
AA121SL03 LCD Screen Payment:
For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.
Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.
AA121SL03 LCD Panel Shipping and Package :
AA121SL03 LCD Screen Shipping:
Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.
Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.
Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.
While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.
Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.
AA121SL03 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of AA121SL03 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of AA121SL03 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of AA121SL03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of AA121SL03 ?
A: we will give you tracking number then you can trace your order from website.
Want to Know more details about this product
