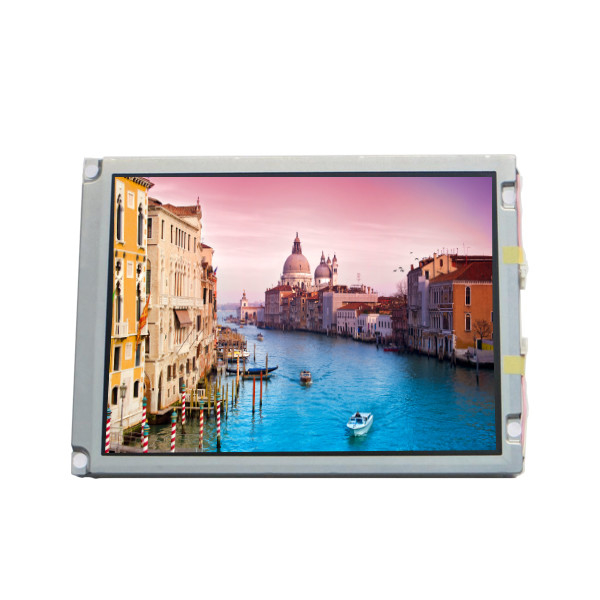

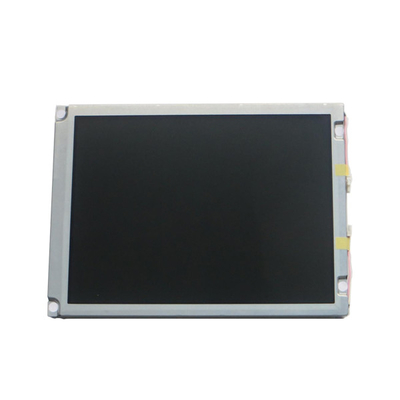

AA104XL02 LCD 10.4 inch 1024*768 TFT-LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA104XL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA104XL02 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 123PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 210.43(W)×157.82(H) Mm |
| Used For: | Industrial | Touch Panel: | Without |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 120:1 (Typ.) (TM) |
Product Description
AA104XL02 LCD 10.4 inch 1024*768 TFT-LCD Screen Display
AA104XL02 LCD Panel Product details :
| Brand | Mitsubishi |
| Model P/N | AA104XL02 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 210.43(W)×157.82(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Dim. | 230(H)×180.2(V)×10(D) mm |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 120:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 4/20 (Typ.)(Tr/Td) |
| Viewing Angle | 50/35/25/50 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transflective |
| Support Color | 262K/16.7M 48%NTSC |
| Light Source | WLED, 100K hours, With LED Driver |
| Weight | 470g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| AA104XL02 LCD 10.4 inch 1024*768 TFT-LCD Screen Display | |
AA104XL02 LCD Screen About Us:
At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.
In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.
As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.
Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.
AA104XL02 LCD Screen Payment:
For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.
Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.
AA104XL02 LCD Panel Shipping and Package :
AA104XL02 LCD Screen Shipping:
Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.
Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.
Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.
While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.
Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.
AA104XL02 LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order AA104XL02 now?
A: The order are shipped within 1-2 working days after received the payment.
