Industrial LCD Panel Display

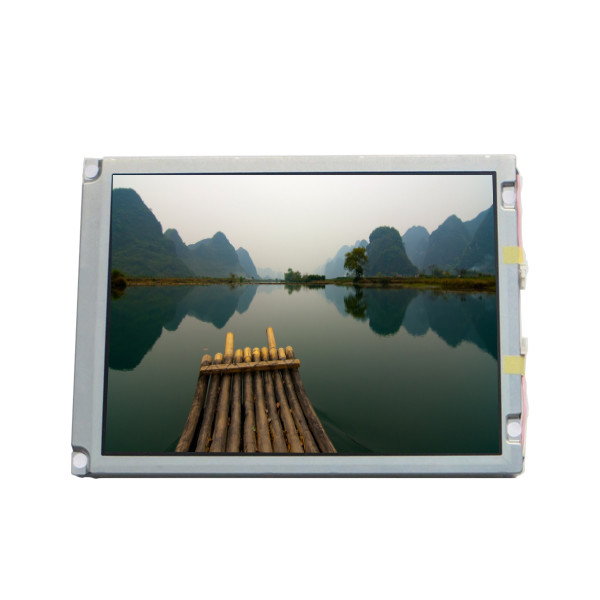

AA104VC11 LCD 10.4 inch 640*480 TFT-LCD Screen Display For Mitsubishi

All Category

Floor Standing Digital Signage

AA104VC11 LCD 10.4 inch 640*480 TFT-LCD Screen Display For Mitsubishi

Brand Name:	Mitsubishi
Model Number:	AA104VC11
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AA104VC11

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Used For:

Industrial

Touch Panel:

Without

Input Voltage:

3.3V (Typ.)

Contrast Ratio:

600:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

AA104VC11 LCD 10.4 inch 640*480 TFT-LCD Screen Display For Mitsubishi

AA104VC11 LCD Panel Product details :

Brand	Mitsubishi
Model P/N	AA104VC11
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline Size	243(W)×181.6(H)×12.7(D) mm
Brightness	430 cd/m² (Typ.)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 40%NTSC
Frequency	60Hz
Weight	570g (Typ.)
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	6/19 (Typ.)(Tr/Td)
Lamp Type	2 pcs CCFL , 50K hours , Without Driver
Touch Screen	Without
Application	Industrial
Signal Interface	CMOS (1 ch, 6-bit), 31 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -20 ~ 80 °C
AA104VC11 LCD 10.4 inch 640*480 TFT-LCD Screen Display For Mitsubishi

AA104VC11 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

AA104VC11 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

AA104VC11 LCD Panel Shipping and Package :

AA104VC11 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

AA104VC11 LCD Panel FAQ :

Q: When would you ship,IF I order AA104VC11 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
