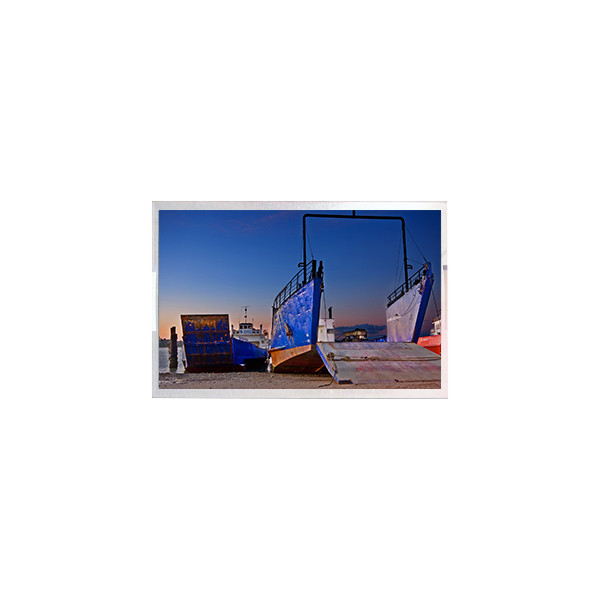

12.3 inch 1920*720 P1230FHF1MAAA lcd screen display

Brand Name:	TIANMA
Model Number:	P1230FHF1MAAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1230FHF1MAAA

Diagonal Size:

12.3"

Panel Type:

, LCM

Resolution:

1920(RGB)×720 166PPI

Application:

Industrial /Outdoor High Brightness

Lamp Type:

8S4P WLED , 30K Hours

Viewing Angle:

88/88/88/88 (Typ.)(CR≥10)

Response:

20 (Max.)(Tr+Td)

Color Depth:

16.7M 99% SRGB

Work Mode:

SFT, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

12.3 inch 1920*720 P1230FHF1MAAA lcd screen display

P1230FHF1MAAA LCD Panel Product details :

Brand	TIANMA
Model P/N	P1230FHF1MAAA
Diagonal Size	12.3"
Panel Type	, LCM
Resolution	1920(RGB)×720 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	292.32(W)×109.62(H) mm
Bezel Opening	-
Outline Size	305.92(W)×123.67(H) ×9.4(D) mm
Surface	Hard coating
Luminance	1400 cd/m² (Typ.)
Contrast Ratio	1100:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	20 (Max.)(Tr+Td)
Good View at	Symmetry
Work Mode	SFT, Normally Black, Transmissive
Color Depth	16.7M 99% sRGB
Backlight	8S4P WLED , 30K hours
Mass	319g (Typ.)
Used for	Industrial /Outdoor High Brightness
Refresh Rate	60Hz
Touchscreen	Without
Input Voltage	3.3V (Typ.)
Signal Type	LVDS (2 ch, 8-bit) , 50 pins Connector
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

P1230FHF1MAAA LCD Panel Shipping and Package :

P1230FHF1MAAA LCD Screen Packing:

Rest assured, your parcel will be meticulously prepared to ensure its safe transit. Each item will be securely enclosed within a protective bubble bag before being placed in a robust and durable box. We take great care in packaging our products to withstand the rigors of transportation, providing you with peace of mind throughout the delivery process. Should you have any concerns or special requests regarding the packaging, please do not hesitate to reach out to our team.

P1230FHF1MAAA LCD Screen Reminder :

Product Accuracy: While product information may be sourced from the internet, rest assured that the images provided are genuine representations of the item you will receive. We take great care to ensure that your order is shipped exactly as depicted in our pictures. To avoid any inconvenience, we kindly request that you compare our images with your desired product prior to purchase. Please note that return postal costs resulting from an incorrect purchase are the responsibility of the buyer.

Order Processing Time: Your order will be processed and shipped within 2-7 working days from the date of purchase. We endeavor to expedite this process to ensure prompt delivery of your item.

Estimated Arrival Time: The estimated arrival time for your order is between 30-60 days, or potentially longer depending on the efficiency of the postal service in your country. We appreciate your patience and understanding regarding any delays that may occur during transit. If you have not received your product within the specified time frame, we kindly ask for your patience and suggest waiting a few additional days for delivery.

P1230FHF1MAAA LCD Screen Attention of receiving :

Upon receiving the products from the express company, it is imperative to conduct a thorough inspection of the package in person. Carefully examine the package for any signs of damage or tampering. Should you notice any discrepancies such as a broken package or damaged product, kindly decline acceptance of the delivery and promptly notify the courier. We strongly advise capturing photographic evidence of the damaged package or product from multiple angles.

The photographic evidence should be divided into two parts. The first set of photos serves as evidence for your own records, while the second set should be forwarded to the express company as a third-party verification. This dual approach ensures comprehensive documentation of the incident.

Upon receipt of the photographic evidence from the express company, detailing the condition of the damaged product, we will initiate an investigation to determine liability for the damages incurred. It is important to note that without corroborating evidence from the third party, we may be unable to proceed with compensation for the damaged product.

In instances where the product is not defective and a return is initiated, the buyer assumes responsibility for covering the return shipping costs and insurance. Additionally, a restocking fee of 25% will be applied to returned items that are not defective.

P1230FHF1MAAA LCD Panel FAQ :

Q: How to make payment of P1230FHF1MAAA ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of P1230FHF1MAAA ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of P1230FHF1MAAA to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of P1230FHF1MAAA via credit card ?

A: Yes!you can use your credit card through your Paypal account.
