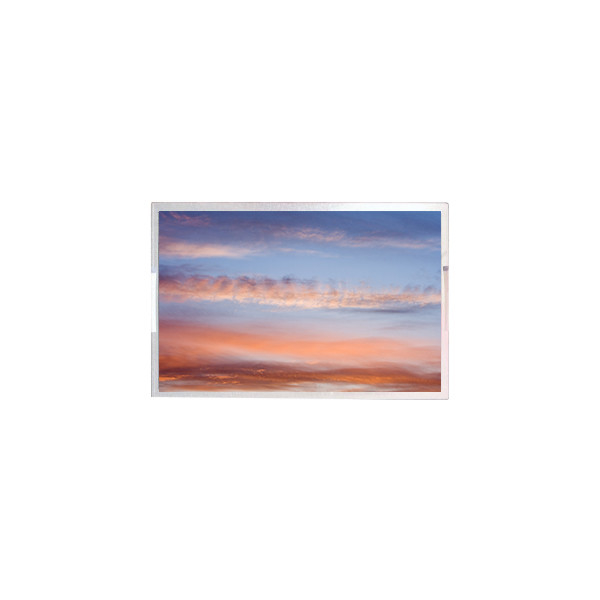

M238HCA-P8Z 23.8 Inch 1080p LCD Screen Panel

Brand Name:	Innolux
Model Number:	M238HCA-P8Z
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HCA-P8Z

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

176(RGB)×220, QCIF+

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor/Gaming

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Response Time:

5 (Typ.)(G To G) Ms

Support Color:

16.7M 60% NTSC

Frame Rate:

180Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

M238HCA-P8Z 23.8 Inch 1080p LCD Screen Panel

M238HCA-P8Z LCD Panel Product details :

Brand	Innolux
Model P/N	M238HCA-P8Z
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.84 × 306.86 × 1.33 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	5 (Typ.)(G to G) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	4.08% (Typ.)(with Polarizer)
Support Color	16.7M 60% NTSC
Light Source	No B/L
Weight	450/500/525g (Min./Typ./Max.)
Designed For	Desktop Monitor/Gaming
Frame Rate	180Hz
Touch Panel	Without
Driver IC list	Built-in COF 6 source chips
Interface Type	LVDS (4 ch, 8-bit) , 92 pins Connector
Power Supply	12V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M238HCA-P8Z LCD Panel Shipping and Package :

M238HCA-P8Z LCD Screen Packing:

Rest assured, your parcel will be meticulously prepared to ensure its safe transit. Each item will be securely enclosed within a protective bubble bag before being placed in a robust and durable box. We take great care in packaging our products to withstand the rigors of transportation, providing you with peace of mind throughout the delivery process. Should you have any concerns or special requests regarding the packaging, please do not hesitate to reach out to our team.

M238HCA-P8Z LCD Screen Reminder :

Product Accuracy: While product information may be sourced from the internet, rest assured that the images provided are genuine representations of the item you will receive. We take great care to ensure that your order is shipped exactly as depicted in our pictures. To avoid any inconvenience, we kindly request that you compare our images with your desired product prior to purchase. Please note that return postal costs resulting from an incorrect purchase are the responsibility of the buyer.

Order Processing Time: Your order will be processed and shipped within 2-7 working days from the date of purchase. We endeavor to expedite this process to ensure prompt delivery of your item.

Estimated Arrival Time: The estimated arrival time for your order is between 30-60 days, or potentially longer depending on the efficiency of the postal service in your country. We appreciate your patience and understanding regarding any delays that may occur during transit. If you have not received your product within the specified time frame, we kindly ask for your patience and suggest waiting a few additional days for delivery.

M238HCA-P8Z LCD Screen Attention of receiving :

Upon receiving the products from the express company, it is imperative to conduct a thorough inspection of the package in person. Carefully examine the package for any signs of damage or tampering. Should you notice any discrepancies such as a broken package or damaged product, kindly decline acceptance of the delivery and promptly notify the courier. We strongly advise capturing photographic evidence of the damaged package or product from multiple angles.

The photographic evidence should be divided into two parts. The first set of photos serves as evidence for your own records, while the second set should be forwarded to the express company as a third-party verification. This dual approach ensures comprehensive documentation of the incident.

Upon receipt of the photographic evidence from the express company, detailing the condition of the damaged product, we will initiate an investigation to determine liability for the damages incurred. It is important to note that without corroborating evidence from the third party, we may be unable to proceed with compensation for the damaged product.

In instances where the product is not defective and a return is initiated, the buyer assumes responsibility for covering the return shipping costs and insurance. Additionally, a restocking fee of 25% will be applied to returned items that are not defective.

M238HCA-P8Z LCD Panel FAQ :

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How long will I receive my goods of M238HCA-P8Z ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for M238HCA-P8Z ?

A: We accept T/T , Paypal , western union .

Q: What happen if the M238HCA-P8Z I receive can't work ?

A: M238HCA-P8Z will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
