MV245FHB-NX1 24.5 Inch Original 1920*1080 LCD Screen Display

Brand Name:	BOE
Model Number:	MV245FHB-NX1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV245FHB-NX1

Diagonal Size:

24.5"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1920(RGB)×1080, FHD 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

543.744(W)×302.616(H) Mm

Designed For:

Desktop Monitor

Light Source:

No B/L

Work Mode:

ADS, Normally Black, Transmissive

Transmittance:

5.4% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

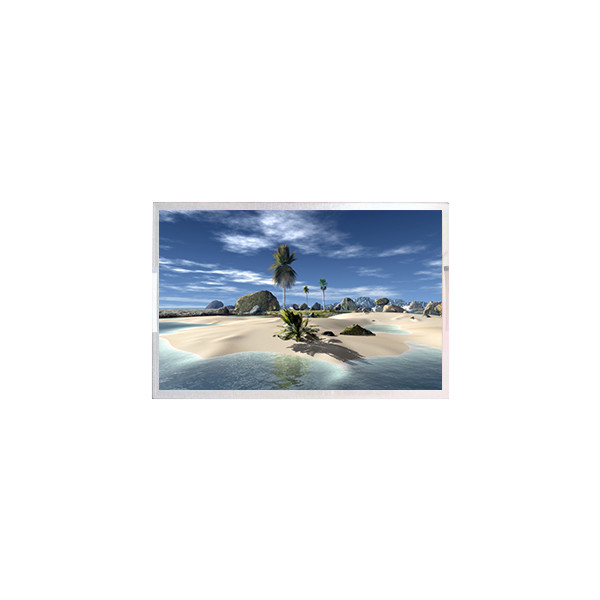

MV245FHB-NX1 24.5 Inch Original 1920*1080 LCD Screen Display

MV245FHB-NX1 LCD Panel Product details :

Brand	BOE
Model P/N	MV245FHB-NX1
Diagonal Size	24.5"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	543.744(W)×302.616(H) mm
Bezel Opening	-
Outline Dim.	551.944(H)×313.216(V) ×1.32(D) mm
Luminance	0 cd/m²
Contrast Ratio	1100:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G)
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Plate Thickness	-
Transmittance	5.4% (Typ.)(with Polarizer)
Color Depth	16.7M 100% sRGB
Backlight	No B/L
Weight	TBD
Used for	Desktop Monitor
Refresh Rate	75Hz
D-IC Detail	COF Built-in 4 source chips
Touchscreen	Without
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	12.0V (Typ.)
Max. Ratings	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

MV245FHB-NX1 LCD Panel Shipping and Package :

MV245FHB-NX1 LCD Screen Packing:

Rest assured, your parcel will be meticulously prepared to ensure its safe transit. Each item will be securely enclosed within a protective bubble bag before being placed in a robust and durable box. We take great care in packaging our products to withstand the rigors of transportation, providing you with peace of mind throughout the delivery process. Should you have any concerns or special requests regarding the packaging, please do not hesitate to reach out to our team.

MV245FHB-NX1 LCD Screen Reminder :

Product Accuracy: While product information may be sourced from the internet, rest assured that the images provided are genuine representations of the item you will receive. We take great care to ensure that your order is shipped exactly as depicted in our pictures. To avoid any inconvenience, we kindly request that you compare our images with your desired product prior to purchase. Please note that return postal costs resulting from an incorrect purchase are the responsibility of the buyer.

Order Processing Time: Your order will be processed and shipped within 2-7 working days from the date of purchase. We endeavor to expedite this process to ensure prompt delivery of your item.

Estimated Arrival Time: The estimated arrival time for your order is between 30-60 days, or potentially longer depending on the efficiency of the postal service in your country. We appreciate your patience and understanding regarding any delays that may occur during transit. If you have not received your product within the specified time frame, we kindly ask for your patience and suggest waiting a few additional days for delivery.

MV245FHB-NX1 LCD Screen Attention of receiving :

Upon receiving the products from the express company, it is imperative to conduct a thorough inspection of the package in person. Carefully examine the package for any signs of damage or tampering. Should you notice any discrepancies such as a broken package or damaged product, kindly decline acceptance of the delivery and promptly notify the courier. We strongly advise capturing photographic evidence of the damaged package or product from multiple angles.

The photographic evidence should be divided into two parts. The first set of photos serves as evidence for your own records, while the second set should be forwarded to the express company as a third-party verification. This dual approach ensures comprehensive documentation of the incident.

Upon receipt of the photographic evidence from the express company, detailing the condition of the damaged product, we will initiate an investigation to determine liability for the damages incurred. It is important to note that without corroborating evidence from the third party, we may be unable to proceed with compensation for the damaged product.

In instances where the product is not defective and a return is initiated, the buyer assumes responsibility for covering the return shipping costs and insurance. Additionally, a restocking fee of 25% will be applied to returned items that are not defective.

MV245FHB-NX1 LCD Panel FAQ :

Q: Do you accept sample orders of MV245FHB-NX1 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of MV245FHB-NX1 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of MV245FHB-NX1 ?

A: The order will be shipped within 2-3 working days after received your payment.
