Industrial LCD Panel Display

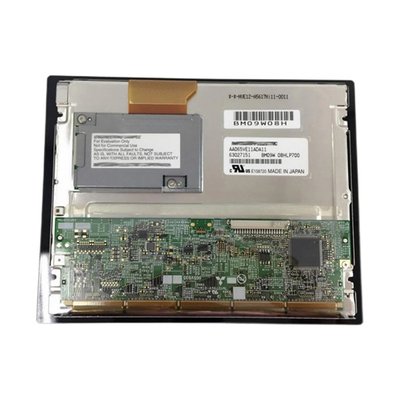

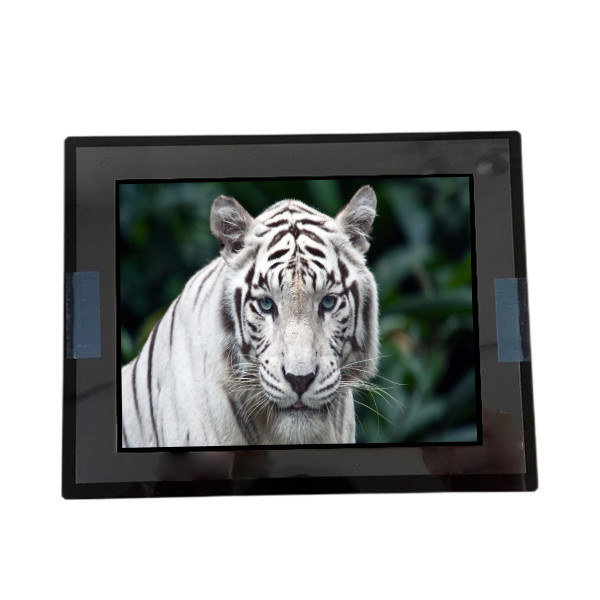

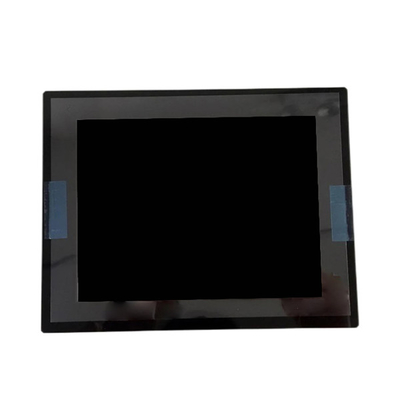

AA065VE11ADA11 LCD 6.5 inch 640*480 TFT-LCD Screen For Mitsubishi

All Category

Floor Standing Digital Signage

AA065VE11ADA11 LCD 6.5 inch 640*480 TFT-LCD Screen For Mitsubishi

Brand Name:	Mitsubishi
Model Number:	AA065VE11ADA11
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AA065VE11ADA11

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 122PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

132.48(W)×99.36(H) Mm

Luminance:

1000 Cd/m² (Typ.)

Contrast Ratio:

600 : 1 (Typ.) (TM)

Used For:

Industrial、Outdoor High Brightness

Voltage Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

AA065VE11ADA11 LCD 6.5 inch 640*480 TFT-LCD Screen For Mitsubishi

AA065VE11ADA11 LCD Panel Product details :

Brand	Mitsubishi
Model P/N	AA065VE11ADA11
Diagonal Size	6.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 122PPI
Pixel Format	RGB Vertical Stripe
Active Area	132.48(W)×99.36(H) mm
Bezel Opening	133.8(W)×100.7(H) mm
Outline Size	170.2(W)×132.6(H)×15.6(D) mm
Treatment	Clear, Hard coating (5H)
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Response	6/19 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 40%NTSC
Backlight	2 stringsWLED, 100K hours, No Driver
Mass	300g (Typ.)
Used for	Industrial,Outdoor High Brightness
Refresh Rate	60Hz
Touchscreen	PCAP, Air Bonding, USB
Signal Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C
AA065VE11ADA11 LCD 6.5 inch 640*480 TFT-LCD Screen For Mitsubishi

AA065VE11ADA11 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

AA065VE11ADA11 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

AA065VE11ADA11 LCD Panel Shipping and Package :

AA065VE11ADA11 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

AA065VE11ADA11 LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd AA065VE11ADA11?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order AA065VE11ADA11 ship?

A: The order are shipped within 1-2 working days after received the payment.
