Industrial LCD Panel Display

G185HAT01.1 18.5 inch 1920*1080 LCD Panel Display

All Category

Floor Standing Digital Signage

G185HAT01.1 18.5 inch 1920*1080 LCD Panel Display

Brand Name:	AUO
Model Number:	G185HAT01.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G185HAT01.1

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 119PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.96(W)×230.04(H) Mm

Designed For:

Industrial

Light Source:

WLED , 50K Hours , With LED Driver

Supply Ability:

100000 Unit/Units per Month

Product Description

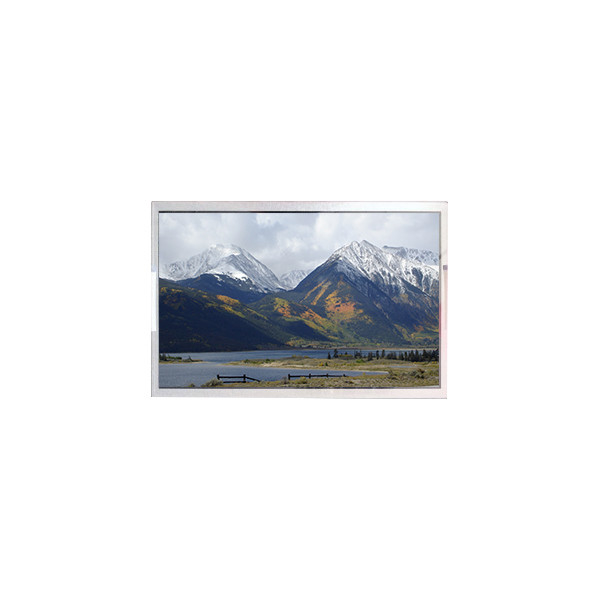

G185HAT01.1 18.5 inch 1920*1080 LCD Panel Display

G185HAT01.1 LCD Panel Product details :

Brand	AUO
Model P/N	G185HAT01.1
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.96(W)×230.04(H) mm
Bezel Opening	489.96(W)×231.04(H) mm
Outline Dim.	450.36(H)×271.44(V) mm
Treatment	Anti-Scatter, Hard coating (7H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	10/10 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M
Light Source	WLED , 50K hours , With LED Driver
Weight	2.50Kgs (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, Optical Bonding, USB
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

G185HAT01.1 LCD Panel Shipping and Package :

G185HAT01.1 LCD Screen Packing:

Rest assured, your parcel will be meticulously prepared to ensure its safe transit. Each item will be securely enclosed within a protective bubble bag before being placed in a robust and durable box. We take great care in packaging our products to withstand the rigors of transportation, providing you with peace of mind throughout the delivery process. Should you have any concerns or special requests regarding the packaging, please do not hesitate to reach out to our team.

G185HAT01.1 LCD Screen Reminder :

Product Accuracy: While product information may be sourced from the internet, rest assured that the images provided are genuine representations of the item you will receive. We take great care to ensure that your order is shipped exactly as depicted in our pictures. To avoid any inconvenience, we kindly request that you compare our images with your desired product prior to purchase. Please note that return postal costs resulting from an incorrect purchase are the responsibility of the buyer.

Order Processing Time: Your order will be processed and shipped within 2-7 working days from the date of purchase. We endeavor to expedite this process to ensure prompt delivery of your item.

Estimated Arrival Time: The estimated arrival time for your order is between 30-60 days, or potentially longer depending on the efficiency of the postal service in your country. We appreciate your patience and understanding regarding any delays that may occur during transit. If you have not received your product within the specified time frame, we kindly ask for your patience and suggest waiting a few additional days for delivery.

G185HAT01.1 LCD Screen Attention of receiving :

Upon receiving the products from the express company, it is imperative to conduct a thorough inspection of the package in person. Carefully examine the package for any signs of damage or tampering. Should you notice any discrepancies such as a broken package or damaged product, kindly decline acceptance of the delivery and promptly notify the courier. We strongly advise capturing photographic evidence of the damaged package or product from multiple angles.

The photographic evidence should be divided into two parts. The first set of photos serves as evidence for your own records, while the second set should be forwarded to the express company as a third-party verification. This dual approach ensures comprehensive documentation of the incident.

Upon receipt of the photographic evidence from the express company, detailing the condition of the damaged product, we will initiate an investigation to determine liability for the damages incurred. It is important to note that without corroborating evidence from the third party, we may be unable to proceed with compensation for the damaged product.

In instances where the product is not defective and a return is initiated, the buyer assumes responsibility for covering the return shipping costs and insurance. Additionally, a restocking fee of 25% will be applied to returned items that are not defective.

G185HAT01.1 LCD Panel FAQ :

Q: Do you accept sample orders of G185HAT01.1 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of G185HAT01.1 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of G185HAT01.1 ?

A: The order will be shipped within 2-3 working days after received your payment.
