LCD Screen Display Panel

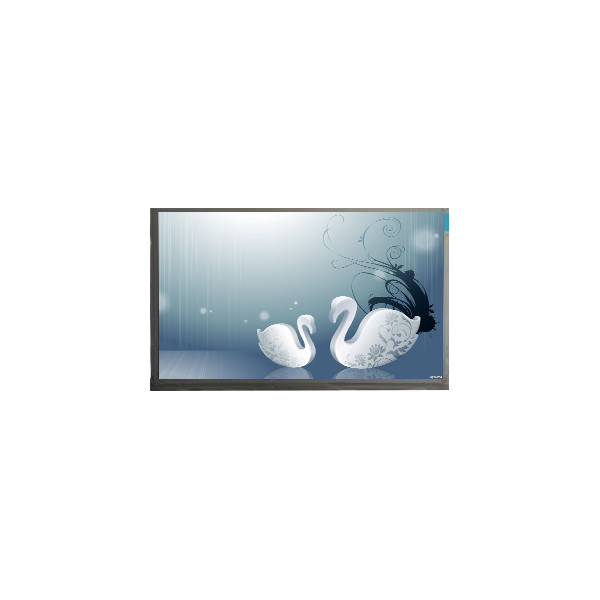

JE123IA-01K 12.3 inch 1920*720 TFT-LCD Screen Display

All Category

Floor Standing Digital Signage

JE123IA-01K 12.3 inch 1920*720 TFT-LCD Screen Display

Brand Name:	Innolux
Model Number:	JE123IA-01K
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

JE123IA-01K

Diagonal Size:

12.3"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×720 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

292.608(W)×109.728(H) Mm

Brightness:

0 Cd/m²

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Application:

Automotive Display

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

JE123IA-01K 12.3 inch 1920*720 TFT-LCD Screen Display

JE123IA-01K LCD Panel Product details :

Brand	Innolux
Model P/N	JE123IA-01K
Diagonal Size	12.3"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×720 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	292.608(W)×109.728(H) mm
Bezel Opening	-
Outline (mm)	304.108×120.928×1.25 (H×V×D)
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	AAS, Normally Black, Transmissive
Glass Thickness	-
Transmissivity	3.82% (Typ.)
Color Depth	16.7M 68%NTSC
Backlight	No B/L
Mass	130g (Typ.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COG 3 source + 2 gate chips
Signal Type	LVDS (2 ch, 8-bit), Connector50 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C

JE123IA-01K LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

JE123IA-01K LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

JE123IA-01K LCD Panel Shipping and Package :

JE123IA-01K LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

JE123IA-01K LCD Panel FAQ :

Q: Can I pay my order of JE123IA-01K via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of JE123IA-01K ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of JE123IA-01K ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
