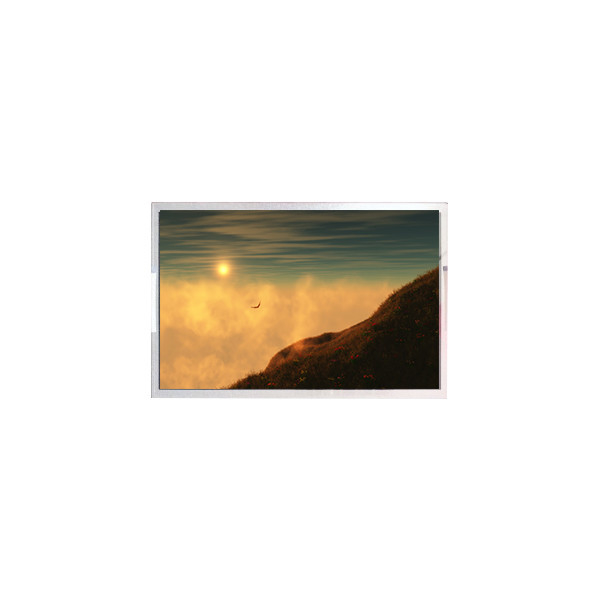

Original 8.0 inch 800*480 Resolution LCD Screen WF80QTIFGDBNB#

Brand Name:	Winstar
Model Number:	WF80QTIFGDBNB#
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

WF80QTIFGDBNB#

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Used For:

Industrial

Resolution:

800(RGB)×480, WVGA 116PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

176.64(W)×99.36(H) Mm

Bezel Opening:

180.1(W)×103.4(H) Mm

Outline Dim.:

192.8(W)×116.9(H) ×12.6(D) Mm

Light Source:

WLED , Without Driver

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 8.0 inch 800*480 Resolution LCD Screen WF80QTIFGDBNB#

WF80QTIFGDBNB# LCD Panel Product details :

Brand	Winstar
Model P/N	WF80QTIFGDBNB#
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 116PPI
Pixel Format	RGB Vertical Stripe
Active Area	176.64(W)×99.36(H) mm
Bezel Opening	180.1(W)×103.4(H) mm
Outline Dim.	192.8(W)×116.9(H) ×12.6(D) mm
Treatment	Antiglare
View Direction	6 o'clock
Response Time	-
Viewing Angle	-
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED , Without Driver
Weight	-
Designed For	Industrial
Frame Rate	-
Touch Panel	Without
Signal Interface	8/16-bit 8080 parallel , 36 pins Connector
Power Supply	3.1V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

WF80QTIFGDBNB# LCD Panel Shipping and Package :

WF80QTIFGDBNB# LCD Screen Packing:

Rest assured, your parcel will be meticulously prepared to ensure its safe transit. Each item will be securely enclosed within a protective bubble bag before being placed in a robust and durable box. We take great care in packaging our products to withstand the rigors of transportation, providing you with peace of mind throughout the delivery process. Should you have any concerns or special requests regarding the packaging, please do not hesitate to reach out to our team.

WF80QTIFGDBNB# LCD Screen Reminder :

Product Accuracy: While product information may be sourced from the internet, rest assured that the images provided are genuine representations of the item you will receive. We take great care to ensure that your order is shipped exactly as depicted in our pictures. To avoid any inconvenience, we kindly request that you compare our images with your desired product prior to purchase. Please note that return postal costs resulting from an incorrect purchase are the responsibility of the buyer.

Order Processing Time: Your order will be processed and shipped within 2-7 working days from the date of purchase. We endeavor to expedite this process to ensure prompt delivery of your item.

Estimated Arrival Time: The estimated arrival time for your order is between 30-60 days, or potentially longer depending on the efficiency of the postal service in your country. We appreciate your patience and understanding regarding any delays that may occur during transit. If you have not received your product within the specified time frame, we kindly ask for your patience and suggest waiting a few additional days for delivery.

WF80QTIFGDBNB# LCD Screen Attention of receiving :

Upon receiving the products from the express company, it is imperative to conduct a thorough inspection of the package in person. Carefully examine the package for any signs of damage or tampering. Should you notice any discrepancies such as a broken package or damaged product, kindly decline acceptance of the delivery and promptly notify the courier. We strongly advise capturing photographic evidence of the damaged package or product from multiple angles.

The photographic evidence should be divided into two parts. The first set of photos serves as evidence for your own records, while the second set should be forwarded to the express company as a third-party verification. This dual approach ensures comprehensive documentation of the incident.

Upon receipt of the photographic evidence from the express company, detailing the condition of the damaged product, we will initiate an investigation to determine liability for the damages incurred. It is important to note that without corroborating evidence from the third party, we may be unable to proceed with compensation for the damaged product.

In instances where the product is not defective and a return is initiated, the buyer assumes responsibility for covering the return shipping costs and insurance. Additionally, a restocking fee of 25% will be applied to returned items that are not defective.

WF80QTIFGDBNB# LCD Panel FAQ :

Q: How long will I receive my goods WF80QTIFGDBNB# ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of WF80QTIFGDBNB# to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods WF80QTIFGDBNB# ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
