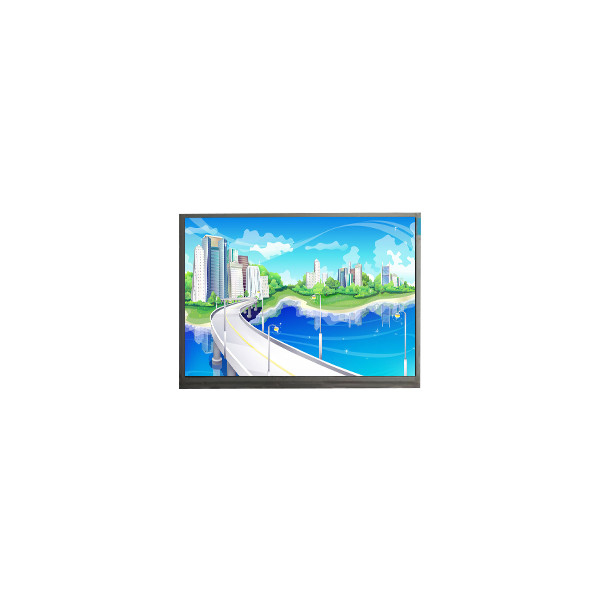

F062A09-6T1 6.2 inch 720*1520 TFT-LCD Screen Display for Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F062A09-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F062A09-6T1 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1520 270PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 67.608(W)×142.728(H) Mm |
| Brightness: | 0 Cd/m² | Contrast Ratio: | 1200 : 1 (Typ.) (TM) |
| Application: | Mobile Phone | Touchscreen: | In-Cell Touch, I²C |
Product Description
F062A09-6T1 6.2 inch 720*1520 TFT-LCD Screen Display for Phone
F062A09-6T1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F062A09-6T1 |
| Diagonal Size | 6.2" |
| Panel Type | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1520 270PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.608(W)×142.728(H) mm |
| Bezel Opening | - |
| Outline Size | 69.608(W)×148.328(H)×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 3.99% (Typ.) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, I²C |
| Driver IC list | Suggest COG FT8006P, NT36525, HX83102-D, ILI9881H, S6D7AT0 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
