LCD Screen Display Panel

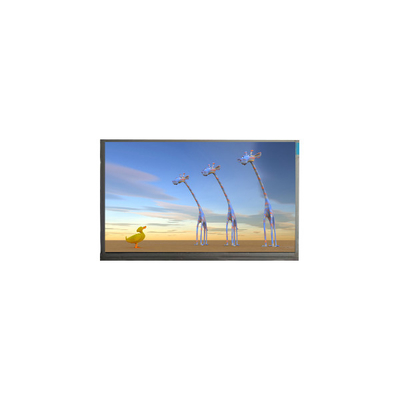

M238HCA-L3Z 23.8 inch 1080p TFT-LCD Screen Display

All Category

Floor Standing Digital Signage

M238HCA-L3Z 23.8 inch 1080p TFT-LCD Screen Display

Brand Name:	Innolux
Model Number:	M238HCA-L3Z
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HCA-L3Z

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Brightness:

250 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Application:

Desktop Monitor

Input Voltage:

5.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

M238HCA-L3Z 23.8 inch 1080p TFT-LCD Screen Display

M238HCA-L3Z LCD Panel Product details :

Brand	Innolux
Model P/N	M238HCA-L3Z
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Size	535(W)×313(H)×14.95(D) mm
Surface	Antiglare (Haze 1%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AAS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	8/7 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	4 stringsWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.18Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M238HCA-L3Z LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

M238HCA-L3Z LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

M238HCA-L3Z LCD Panel Shipping and Package :

M238HCA-L3Z LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

M238HCA-L3Z LCD Panel FAQ :

Q: Can You declare my order of M238HCA-L3Z to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of M238HCA-L3Z ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of M238HCA-L3Z via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders of M238HCA-L3Z ?

A: Of course!sample order is welcome !
