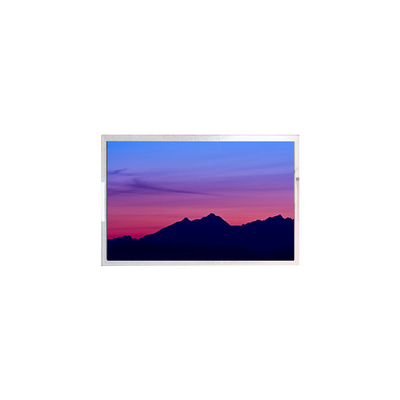

14.6 inch HSD146JUW1-A10-0299 lcd display display with touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD146JUW1-A10-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD146JUW1-A10-0299 | Diagonal Size: | 14.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Used For: | Automotive Display |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 1500 : 1 (Typ.) (TM) |
| Active Area: | 323.136(W)×181.764(H) Mm | Outline Dim.: | 329.037 × 191.064 × 0.78 (H×V×D) |
| Support Color: | 16.7M 72% NTSC | Light Source: | No B/L |
Product Description
14.6 inch HSD146JUW1-A10-0299 lcd display display with touch screen
HSD146JUW1-A10-0299 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD146JUW1-A10-0299 |
| Diagonal Size | 14.6" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 323.136(W)×181.764(H) mm |
| Bezel Opening | - |
| Outline Dim. | 329.037 × 191.064 × 0.78 (H×V×D) |
| Treatment | Clear, Hard coating, Reflection 5.0% (Typ.) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Glass Thickness | 0.25+0.25 mm |
| Transmissivity | 3.35% (Typ.)(with Polarizer) |
| Support Color | 16.7M 72% NTSC |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch, I²C |
| Driver IC list | Built-in COG 2 source + 2 gate chips |
| Interface Type | LVDS (2 ch, 8-bit) Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C |
HSD146JUW1-A10-0299 LCD Panel Shipping and Package :
HSD146JUW1-A10-0299 LCD Screen Packing:
Rest assured, your parcel will be meticulously prepared to ensure its safe transit. Each item will be securely enclosed within a protective bubble bag before being placed in a robust and durable box. We take great care in packaging our products to withstand the rigors of transportation, providing you with peace of mind throughout the delivery process. Should you have any concerns or special requests regarding the packaging, please do not hesitate to reach out to our team.
HSD146JUW1-A10-0299 LCD Screen Reminder :
Product Accuracy: While product information may be sourced from the internet, rest assured that the images provided are genuine representations of the item you will receive. We take great care to ensure that your order is shipped exactly as depicted in our pictures. To avoid any inconvenience, we kindly request that you compare our images with your desired product prior to purchase. Please note that return postal costs resulting from an incorrect purchase are the responsibility of the buyer.
Order Processing Time: Your order will be processed and shipped within 2-7 working days from the date of purchase. We endeavor to expedite this process to ensure prompt delivery of your item.
Estimated Arrival Time: The estimated arrival time for your order is between 30-60 days, or potentially longer depending on the efficiency of the postal service in your country. We appreciate your patience and understanding regarding any delays that may occur during transit. If you have not received your product within the specified time frame, we kindly ask for your patience and suggest waiting a few additional days for delivery.
HSD146JUW1-A10-0299 LCD Screen Attention of receiving :
Upon receiving the products from the express company, it is imperative to conduct a thorough inspection of the package in person. Carefully examine the package for any signs of damage or tampering. Should you notice any discrepancies such as a broken package or damaged product, kindly decline acceptance of the delivery and promptly notify the courier. We strongly advise capturing photographic evidence of the damaged package or product from multiple angles.
The photographic evidence should be divided into two parts. The first set of photos serves as evidence for your own records, while the second set should be forwarded to the express company as a third-party verification. This dual approach ensures comprehensive documentation of the incident.
Upon receipt of the photographic evidence from the express company, detailing the condition of the damaged product, we will initiate an investigation to determine liability for the damages incurred. It is important to note that without corroborating evidence from the third party, we may be unable to proceed with compensation for the damaged product.
In instances where the product is not defective and a return is initiated, the buyer assumes responsibility for covering the return shipping costs and insurance. Additionally, a restocking fee of 25% will be applied to returned items that are not defective.
HSD146JUW1-A10-0299 LCD Panel FAQ :
Q: Can You declare my order of HSD146JUW1-A10-0299to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD146JUW1-A10-0299?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods HSD146JUW1-A10-0299?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HSD146JUW1-A10-0299?
A: We accept T/T , Paypal , western union .
