LCD Laptop Screen

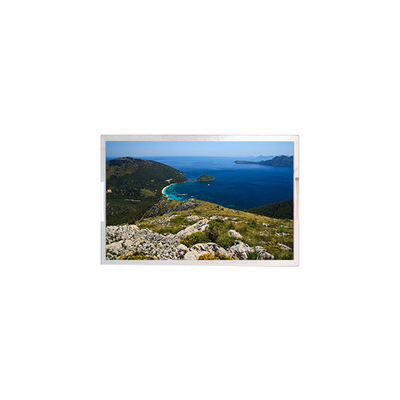

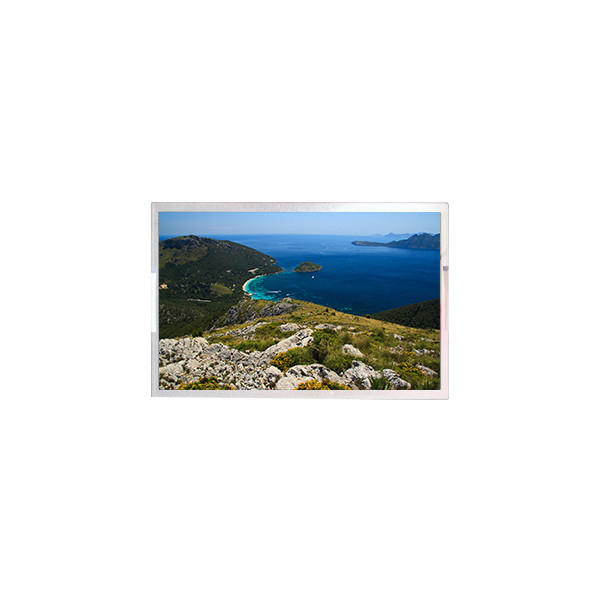

NE160WUM-NX3 16.0 inch 2K TFT-LCD Screen Display

All Category

Floor Standing Digital Signage

NE160WUM-NX3 16.0 inch 2K TFT-LCD Screen Display

Brand Name:	BOE
Model Number:	NE160WUM-NX3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NE160WUM-NX3

Diagonal Size:

16.0"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.68(W)×215.42(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Contrast Ratio:

1000:1 (Typ.) (TM)

Designed For:

Laptop、Gaming

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

NE160WUM-NX3 16.0 inch 2K TFT-LCD Screen Display

NE160WUM-NX3 LCD Panel Product details :

Brand	BOE
Model P/N	NE160WUM-NX3
Diagonal Size	16.0"
Panel Type	Oxide TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.68(W)×215.42(H) mm
Bezel Opening	-
Outline(mm)	349.68(W)×224.42(H) ×4.6(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td)
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Color Depth	1.06B 45% NTSC
Backlight	11S6P WLED , 15K hours , With LED Driver
Outline Shape	Slim (PCBA Bent, T≤3.0mm)
Used for	Laptop,Gaming
Refresh Rate	144Hz
Touchscreen	Without
Signal Type	eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

NE160WUM-NX3 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

NE160WUM-NX3 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

NE160WUM-NX3 LCD Panel Shipping and Package :

NE160WUM-NX3 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

NE160WUM-NX3 LCD Panel FAQ :

Q: What happen if the lcd panel NE160WUM-NX3 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can you declared low value of my order about NE160WUM-NX3 ?

A: Yes , we can . But you need to leave message to us before shipping.

Q: When will my order NE160WUM-NX3 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: How to order NE160WUM-NX3 ?

A: We accept T/T , PAYPAL , WESTERN UNION .
