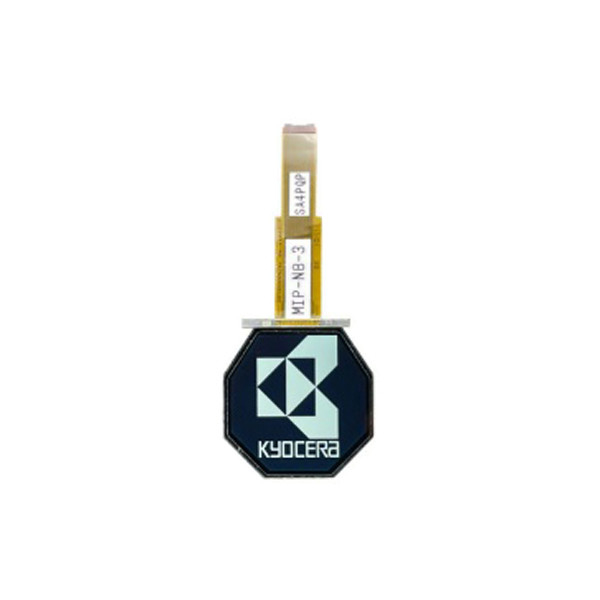

TN0103ANVNANN-GN00 LCD 1.0 inch 128*128 TFT-LCD Screen Display

Brand Name:	Kyocera
Model Number:	TN0103ANVNANN-GN00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TN0103ANVNANN-GN00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

128×128

Pixel Format:

Rectangle

Active Area:

21.96(W)×24.26(H) Mm

Viewing Angle:

60/60/60/60

Contrast Ratio:

40:1 (Typ.) (TM)

Designed For:

Wearable

Input Voltage:

10/35uV (Typ.)(Fixed/Rewrite)

Supply Ability:

100000 Unit/Units per Month

Product Description

TN0103ANVNANN-GN00 LCD 1.0 inch 128*128 TFT-LCD Screen Display

TN0103ANVNANN-GN00 LCD Panel Product details :

Brand	Kyocera
Model P/N	TN0103ANVNANN-GN00
Diagonal Size	1.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	128×128
Pixel Format	Rectangle
Outline Size	21.96(W)×24.26(H) mm
Surface	-
Brightness	-
Contrast Ratio	40:1 (Typ.) (TM)
Viewing Angle	60/60/60/60
Display Mode	ECB, Normally Black, Reflective
Best View on	-
Response Time	-
Display Colors	Monochrome
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Panel Weight	-
Application	Wearable
Signal Interface	SPI
Input Voltage	10/35uV (Typ.)(Fixed/Rewrite)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
TN0103ANVNANN-GN00 LCD 1.0 inch 128*128 TFT-LCD Screen Display

TN0103ANVNANN-GN00 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TN0103ANVNANN-GN00 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TN0103ANVNANN-GN00 LCD Panel Shipping and Package :

TN0103ANVNANN-GN00 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TN0103ANVNANN-GN00 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of TN0103ANVNANN-GN00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of TN0103ANVNANN-GN00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of TN0103ANVNANN-GN00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
