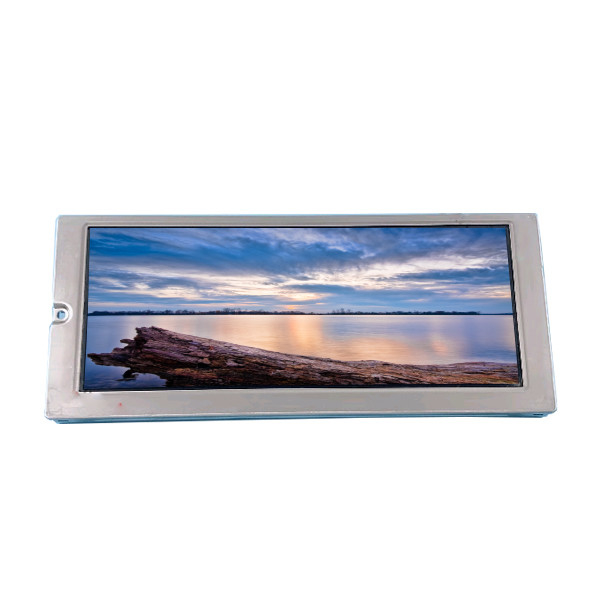

THG062HV1AC-G00 LCD 6.2 inch 640*240 TFT-LCD Screen Display For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | THG062HV1AC-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | THG062HV1AC-G00 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 109PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 147.84(W)×55.44(H) Mm |
| Luminance: | 50 Cd/m² (Typ.) | Contrast Ratio: | 40:1 (Typ.) (TM) 35:1 (Typ.) (RF) |
| Designed For: | Industrial | Power Supply: | 3.3V (Typ.) |
Product Description
THG062HV1AC-G00 LCD 6.2 inch 640*240 TFT-LCD Screen Display For Industrial
THG062HV1AC-G00 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | THG062HV1AC-G00 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 147.84(W)×55.44(H) mm |
| Bezel Opening | 152.4(W)×60.0(H) mm |
| Outline Size | 174.2(W)×73.4(H)×12.7(D) mm |
| Brightness | 50 cd/m² (Typ.) |
| Viewing Angle | 60/70/40/40 (Typ.)(CR≥5) |
| Best View on | - |
| Display Colors | 262K 14%NTSC |
| Frequency | 60Hz |
| Weight | 165g |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 40:1 (Typ.) (TM) 35:1 (Typ.) (RF) |
| Display Mode | TN, Normally White, Transflective |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Lamp Type | 1 pcs CCFL , 54K hours , Without Driver |
| Touch Screen | Without |
| Application | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 33 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| THG062HV1AC-G00 LCD 6.2 inch 640*240 TFT-LCD Screen Display For Industrial | |
