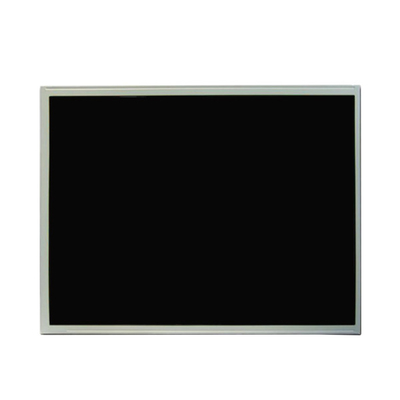

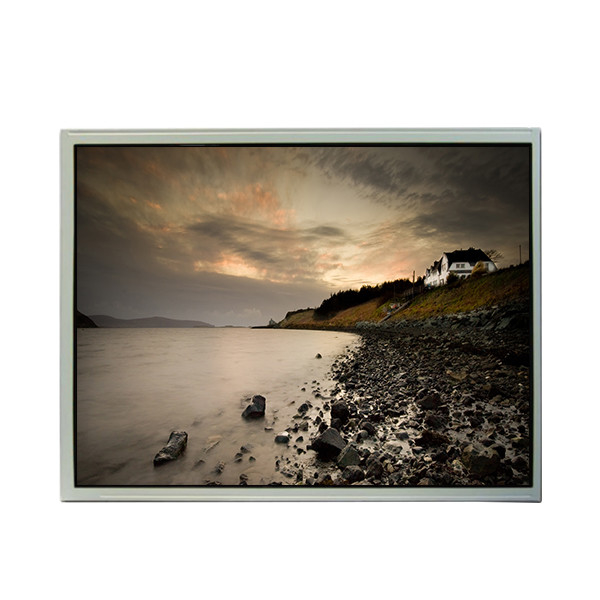

TCG190SX4AB-A00 LCD 19.0 inch 1280*1024 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG190SX4AB-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG190SX4AB-A00 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 376.32(W)×301.056(H) Mm |
| Luminance: | 240 Cd/m² (Typ.) | Contrast Ratio: | 2000:1 (Typ.) (TM) |
| Designed For: | Industrial | Power Supply: | 5.0V (Typ.) |
Product Description
TCG190SX4AB-A00 LCD 19.0 inch 1280*1024 LCD Screen Panel
TCG190SX4AB-A00 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG190SX4AB-A00 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | - |
| Outline Size | 396(W)×324(H)×21.75(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 240 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | VA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/5 (Typ.)(Tr/Td), 8 (Typ.)(G to G) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 4 pcs CCFL, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch, G/G |
| Panel Weight | - |
| Application | Industrial |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| TCG190SX4AB-A00 LCD 19.0 inch 1280*1024 LCD Screen Panel | |
