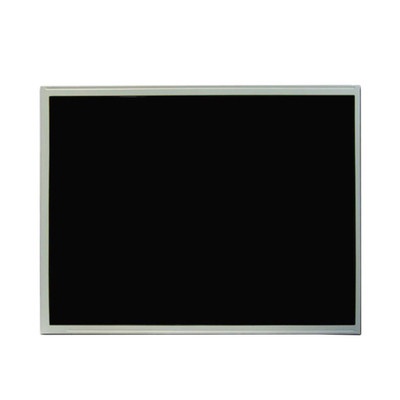

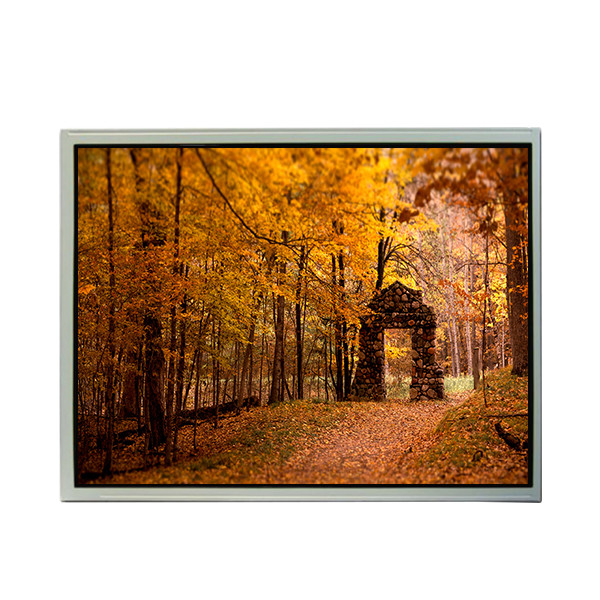

TCG150XGLBB-C00 15.0 inch 1024*768 LCD Screen Display For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG150XGLBB-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG150XGLBB-C00 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Luminance: | 280 (Typ.)(cd/m²) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Designed For: | Industrial | Power Supply: | 3.3V (Typ.) |
Product Description
TCG150XGLBB-C00 15.0 inch 1024*768 LCD Screen Display For Industrial
TCG150XGLBB-C00 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG150XGLBB-C00 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline(mm) | 326.5(W)×253.5(H)×14.84(D) |
| Luminance | 280 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | - |
| Color Depth | 262K/16.2M 65% NTSC |
| Mass | - |
| Refresh Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (2H) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Backlight | 3 strings WLED , 50K hours , No Driver |
| Used for | Industrial |
| Touchscreen | 4-wire Resistive Touch, G/G |
| Signal Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 65 °C |
| TCG150XGLBB-C00 15.0 inch 1024*768 LCD Screen Display For Industrial | |
TCG150XGLBB-C00 LCD Panel Friendly Reminder:
Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.
Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.
Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.
TCG150XGLBB-C00 LCD Panel Shipping and Package :
TCG150XGLBB-C00 LCD Panel Shipping and Delivery Information:
Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.
Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.
Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.
Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.
TCG150XGLBB-C00 LCD Panel Return Policy:
One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.
Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.
Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.
Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.
Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.
Thank you for your cooperation. We wish you a pleasant shopping experience!
TCG150XGLBB-C00 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
