Industrial LCD Panel Display

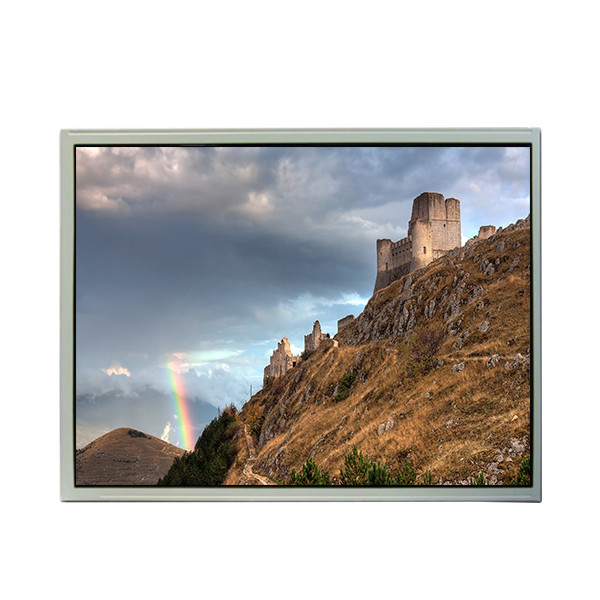

TCG121XGLPAPNN-AN20-SA 12.1 inch 1024*768 LCD Screen Display

All Category

Floor Standing Digital Signage

TCG121XGLPAPNN-AN20-SA 12.1 inch 1024*768 LCD Screen Display

Brand Name:	Kyocera
Model Number:	TCG121XGLPAPNN-AN20-SA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG121XGLPAPNN-AN20-SA

Diagonal Size:

12.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 105PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

245.76(W)×184.32(H) Mm

Luminance:

400 Cd/m² (Typ.)

Contrast Ratio:

750:1 (Typ.) (TM)

Designed For:

Industrial

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TCG121XGLPAPNN-AN20-SA 12.1 inch 1024*768 LCD Screen Display

TCG121XGLPAPNN-AN20-SA LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG121XGLPAPNN-AN20-SA
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI
Pixel Format	RGB Vertical Stripe
Active Area	245.76(W)×184.32(H) mm
Bezel Opening	249.0(W)×187.5(H) mm
Outline(mm)	260.5 × 203.4× 10.8 (H×V×D)
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	750 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	18/12 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	AWV, Normally Black, Transmissive
Color Depth	262K/16.2M 48%NTSC
Backlight	WLED, 50K hours, With LED Driver
Mass	670g
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C
TCG121XGLPAPNN-AN20-SA 12.1 inch 1024*768 LCD Screen Display

TCG121XGLPAPNN-AN20-SA LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

TCG121XGLPAPNN-AN20-SA LCD Panel Shipping and Package :

TCG121XGLPAPNN-AN20-SA LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

TCG121XGLPAPNN-AN20-SA LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

TCG121XGLPAPNN-AN20-SA LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TCG121XGLPAPNN-AN20-SA I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
