TCG104VGLPEANN-AN60 10.4 inch 640*480 480 cd/m2 LCD Screen Display

All Category

Floor Standing Digital Signage

TCG104VGLPEANN-AN60 10.4 inch 640*480 480 cd/m2 LCD Screen Display

Brand Name:	Kyocera
Model Number:	TCG104VGLPEANN-AN60
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG104VGLPEANN-AN60

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Brightness:

480 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Designed For:

Industrial

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

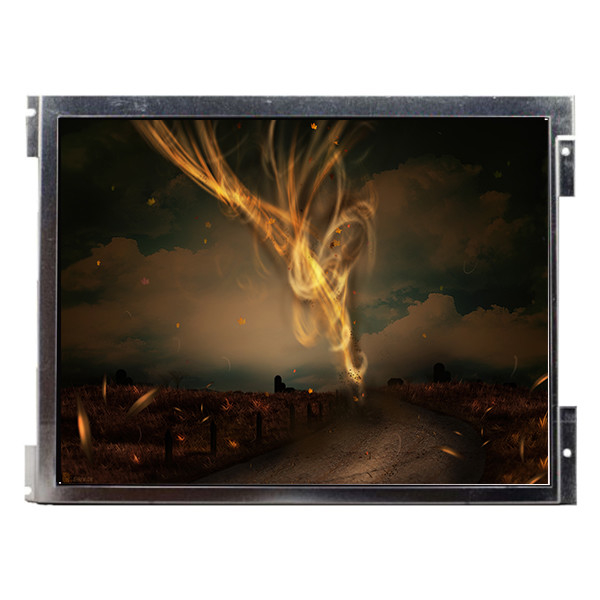

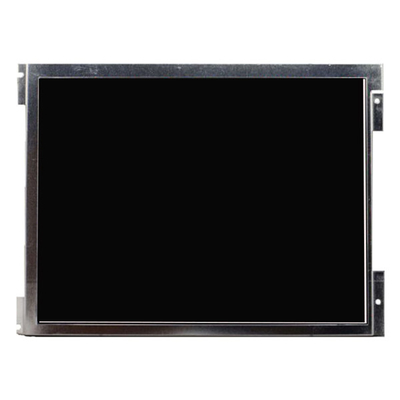

TCG104VGLPEANN-AN60 10.4 inch 640*480 480 cd/m2 LCD Screen Display

TCG104VGLPEANN-AN60 LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG104VGLPEANN-AN60
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×162.2(H) mm
Outline Dim.	240.7(W)×180.2(H) mm
Luminance	480 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Support Color	16.7M 50% NTSC
Weight	445g (Typ.)
Frame Rate	60Hz
Treatment	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	10/20 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED, 50K hours , With LED Driver
Designed For	Industrial
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit)30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 80 °C; Storage Temperature: -30 ~ 80 °C

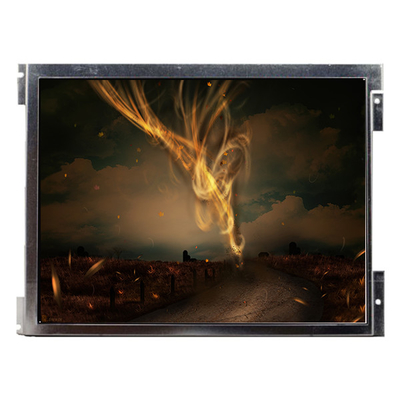

TCG104VGLPEANN-AN60 10.4 inch 640*480 480 cd/m2 LCD Screen Display

TCG104VGLPEANN-AN60 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

TCG104VGLPEANN-AN60 LCD Panel Shipping and Package :

TCG104VGLPEANN-AN60 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

TCG104VGLPEANN-AN60 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

TCG104VGLPEANN-AN60 LCD Panel FAQ :

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: When would you ship,IF I order TCG104VGLPEANN-AN60 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.
