TCG104SVLQJPNN-AN41 10.4 inch 800*600 LCD Screen For Kyocera

Brand Name:	Kyocera
Model Number:	TCG104SVLQJPNN-AN41
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG104SVLQJPNN-AN41

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Brightness:

1200 Cd/m² (Typ.)

Contrast Ratio:

750 : 1 (Typ.) (TM)

Designed For:

Industrial、Outdoor High Brightness

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

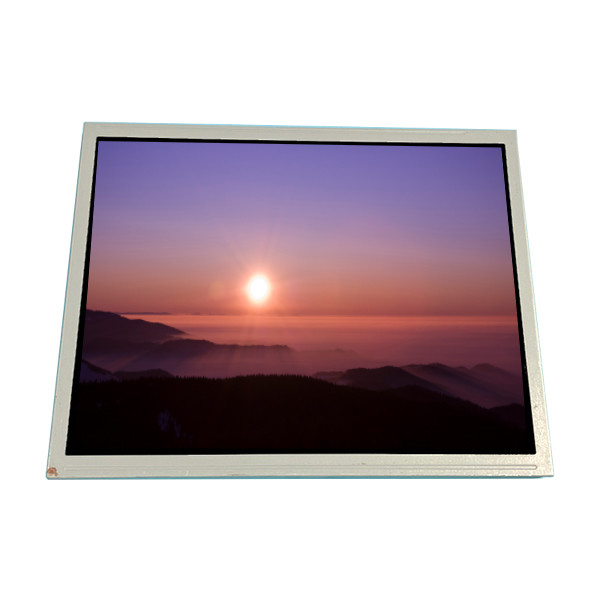

TCG104SVLQJPNN-AN41 10.4 inch 800*600 LCD Screen For Kyocera

TCG104SVLQJPNN-AN41 LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG104SVLQJPNN-AN41
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline Dim.	230(H)×180.2(V)×11(D) mm
Treatment	Antiglare
Luminance	1200 cd/m² (Typ.)
Contrast Ratio	750:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	18/12 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AWV, Normally Black, Transmissive
Support Color	16.7M 51%NTSC
Light Source	WLED [8S4P], 70K hours, With LED Driver
Weight	475g
Designed For	Industrial,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 30 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

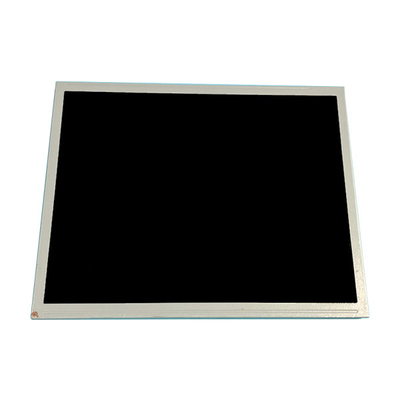

TCG104SVLQJPNN-AN41 10.4 inch 800*600 LCD Screen For Kyocera

TCG104SVLQJPNN-AN41 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

TCG104SVLQJPNN-AN41 LCD Panel Shipping and Package :

TCG104SVLQJPNN-AN41 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

TCG104SVLQJPNN-AN41 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

TCG104SVLQJPNN-AN41 LCD Panel FAQ :

Q: How to order lcd panel TCG104SVLQJPNN-AN41 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TCG104SVLQJPNN-AN41 ?

A: NEW Product warranty is 90 days.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
