TCG085WVLQDPGJ-GC00 8.5 inch 320cd/m2 LCD Screen For Industrial

Brand Name:	Kyocera
Model Number:	TCG085WVLQDPGJ-GC00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TCG085WVLQDPGJ-GC00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 109PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

184.8(W)×110.88(H) Mm

Luminance:

320 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Designed For:

Industrial、Healthcare

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

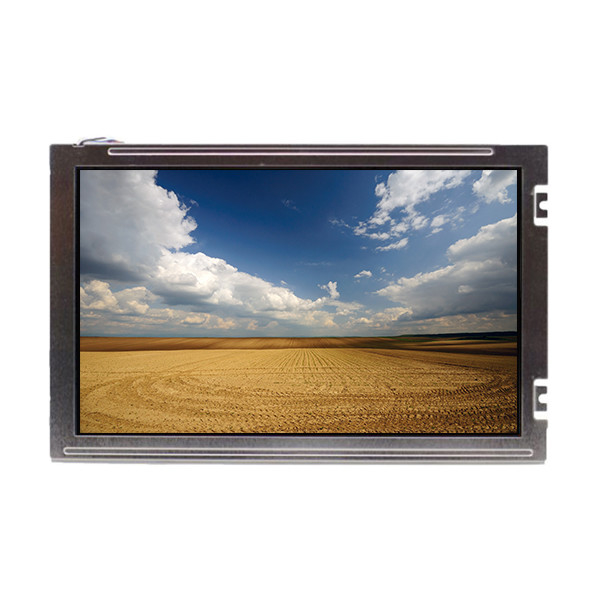

TCG085WVLQDPGJ-GC00 8.5 inch 320cd/m2 LCD Screen For Industrial

TCG085WVLQDPGJ-GC00 LCD Panel Product details :

Brand	Kyocera
Model P/N	TCG085WVLQDPGJ-GC00
Diagonal Size	8.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 109PPI
Pixel Format	RGB Vertical Stripe
Active Area	184.8(W)×110.88(H) mm
Bezel Opening	-
Outline Size	210(W)×134(H)×11.34(D) mm
Brightness	320 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K 50%NTSC
Frequency	60Hz
Weight	375g
Surface	Anti Fingerprint + Clear, Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	AWV, Normally Black, Transmissive
Response Time	12/18 (Typ.)(Tr/Td)
Lamp Type	WLED , 100K hours , Without Driver
Touch Screen	4-wire Resistive Touch
Application	Industrial,Healthcare
Signal Interface	CMOS (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
TCG085WVLQDPGJ-GC00 8.5 inch 320cd/m2 LCD Screen For Industrial

TCG085WVLQDPGJ-GC00 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

TCG085WVLQDPGJ-GC00 LCD Panel Shipping and Package :

TCG085WVLQDPGJ-GC00 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

TCG085WVLQDPGJ-GC00 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

TCG085WVLQDPGJ-GC00 LCD Panel FAQ :

Q: What happen if the lcd panel TCG085WVLQDPGJ-GC00 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order TCG085WVLQDPGJ-GC00 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.
